ADM3057EBRWZ-RL - Analog Devices

Description: 5 kVrms/3 kV rms signal and power isolated CAN transceivers isoPower integrated isolated dc-to-dc converter VIO pin for 1.7 V to 5.5 V logic levels ISO 11898-2:2016 compliant (CAN FD) Data rates up to 12 Mbps for CAN FD Low maximum loop propagation delay: 150 ns Extended common-mode range: ±25 V Bus fault protection: ±40 V on CANH and CANL pins Low power standby support remote wake request Extra isolated signal for control (such as termination switches) Passes EN 55022 Class B by 6 dB Slope contr

Download ADM3057EBRWZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

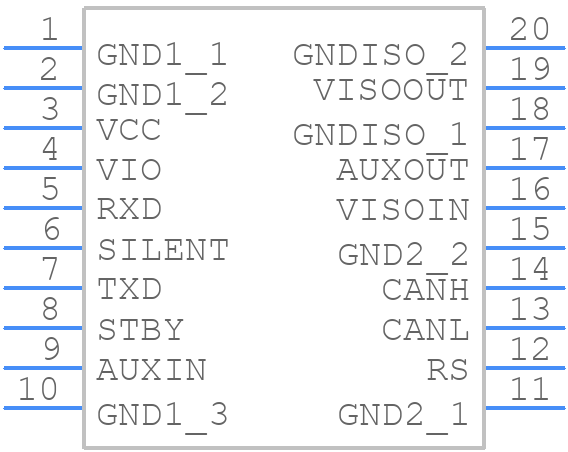

ADM3057EBRWZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3057EBRWZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-20
click to zoom
3D Models
ADM3057EBRWZ-RL - Analog Devices - 3D model - Small Outline Packages - RW-20
click to zoom

ADM3057EBRWZ-RL Details

  • Manufacturer Part Number:

    ADM3057EBRWZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-11-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADM3057EBRWZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3057EBRWZ-RL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
  • To ensure reliable communication, use a reliable serial communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SCL line and a pull-down resistor on the SDA line.
  • The maximum cable length supported by the ADM3057EBRWZ-RL depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters for RS-485 and up to 10 meters for RS-232.
  • To troubleshoot issues with the ADM3057EBRWZ-RL, start by checking the power supply voltage and ensuring that it is within the specified range. Then, check the serial communication protocol and ensure that it is correctly configured. Use a logic analyzer or oscilloscope to debug the serial communication signals.
  • Yes, the ADM3057EBRWZ-RL can be used in a hot-swappable application. However, ensure that the device is properly powered down before hot-swapping to prevent damage to the device or other components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3057EBRWZ-RL Overview

Use the download button to access the ADM3057EBRWZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
