Part Image

ADM3062EBCPZ-R7 - Analog Devices

Description: 3.0 V to 5.5 V with VIO, ±12 kV IEC ESD Protected, Half Duplex 500 kbps RS-485 Transceiver

Download ADM3062EBCPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

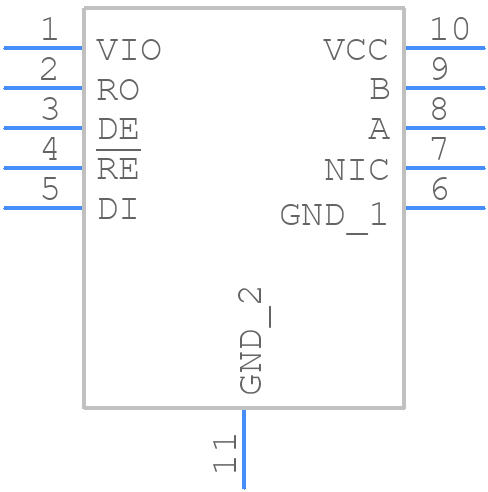

ADM3062EBCPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3062EBCPZ-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-10-9
click to zoom
3D Models
ADM3062EBCPZ-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-10-9
click to zoom

ADM3062EBCPZ-R7 Details

  • Manufacturer Part Number:

    ADM3062EBCPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    800 ns

  • Width:

    3 mm

ADM3062EBCPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3062EBCPZ-R7 should minimize noise and EMI. Keep the input and output traces separate, use a solid ground plane, and place the device close to the signal source. Also, use a low-ESR capacitor for the VCC pin and a 0.1uF capacitor for the EN pin.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence: VCC should be applied before the EN pin is driven high. Also, ensure that the EN pin is driven high only after VCC has reached its nominal value.
  • The maximum cable length that can be driven by the ADM3062EBCPZ-R7 depends on the cable type, signal frequency, and desired signal integrity. As a general guideline, the device can drive up to 100 meters of Category 5e cable at 100 Mbps. However, it's recommended to consult the datasheet and perform signal integrity simulations for specific applications.
  • To troubleshoot issues with the ADM3062EBCPZ-R7, first check the power supply voltage and ensure it's within the recommended range. Verify that the EN pin is properly driven high and that the input signals are within the specified range. Also, check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB.
  • The ADM3062EBCPZ-R7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and perform thermal simulations to ensure the device can operate reliably in the target application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3062EBCPZ-R7 Overview

Use the download button to access the ADM3062EBCPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
