ADM3063EARZ-R7 - Analog Devices

Description: 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Full Duplex 500 kbps RS-485 Transceiver

Download ADM3063EARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

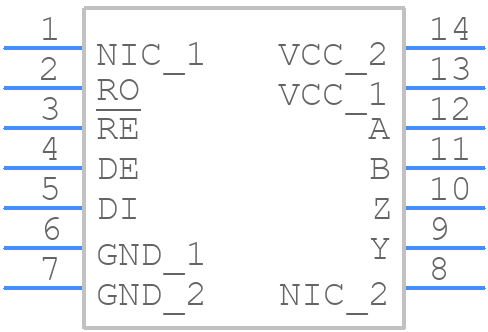

Symbol
ADM3063EARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3063EARZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)
click to zoom
3D Models
ADM3063EARZ-R7 - Analog Devices - 3D model - Small Outline Packages - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)
click to zoom

ADM3063EARZ-R7 Details

  • Manufacturer Part Number:

    ADM3063EARZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    800 ns

  • Width:

    3.9 mm

ADM3063EARZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3063EARZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-0971 for more details.
  • Proper termination of the ADM3063EARZ-R7 involves using a 50Ω termination resistor at the receiver end, and a 50Ω transmission line impedance. The device also has an internal 50Ω termination resistor, so no external termination is required at the driver end.
  • The maximum cable length supported by the ADM3063EARZ-R7 depends on the signal frequency and the type of cable used. As a general guideline, the device can support cable lengths up to 10 meters at 100 Mbps, and up to 3 meters at 1 Gbps. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
  • The ADM3063EARZ-R7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging. Additionally, the device should be powered down during handling and assembly to prevent damage from ESD events.
  • The recommended power-up sequence for the ADM3063EARZ-R7 is to power up the VCC supply first, followed by the VEE supply. This ensures that the internal biasing circuitry is properly initialized. It's also recommended to power up the device slowly, with a ramp-up time of at least 1 ms, to prevent damage from inrush currents.
