ADM3063EBRZ-R7 - Analog Devices

Description: 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Full Duplex 500 kbps RS-485 Transceiver

Download ADM3063EBRZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

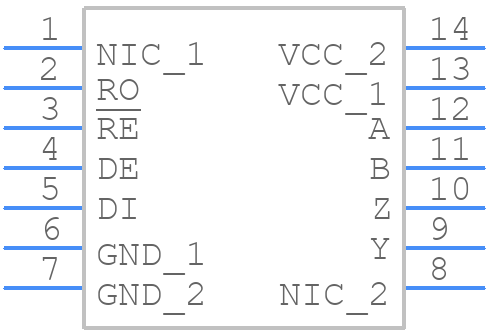

ADM3063EBRZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3063EBRZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)
click to zoom
3D Models
ADM3063EBRZ-R7 - Analog Devices - 3D model - Small Outline Packages - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)
click to zoom

ADM3063EBRZ-R7 Details

  • Manufacturer Part Number:

    ADM3063EBRZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    200 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    800 ns

  • Width:

    3.9 mm

ADM3063EBRZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3063EBRZ-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • When choosing capacitors for the ADM3063EBRZ-R7, consider the operating frequency, voltage rating, and ESR (Equivalent Series Resistance). For the input capacitor, a 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric is recommended. For the output capacitor, a 10uF to 47uF ceramic capacitor with an X7R or X5R dielectric is recommended.
  • The ADM3063EBRZ-R7 has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To ensure the ADM3063EBRZ-R7 is properly powered, use a clean and stable power supply with a voltage range of 2.7V to 5.5V. Additionally, decouple the power supply lines with a 10uF to 22uF ceramic capacitor and a 1uF to 10uF ceramic capacitor in parallel to reduce noise and ripple.
  • The typical current consumption of the ADM3063EBRZ-R7 is around 10mA to 15mA, depending on the operating frequency and output load. However, the current consumption can increase up to 30mA or more under certain operating conditions.
