ADM3067EARZ-R7 - Analog Devices

Description: 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Full Duplex 50 Mbps RS-485 Transceiver

Download ADM3067EARZ-R7 Model

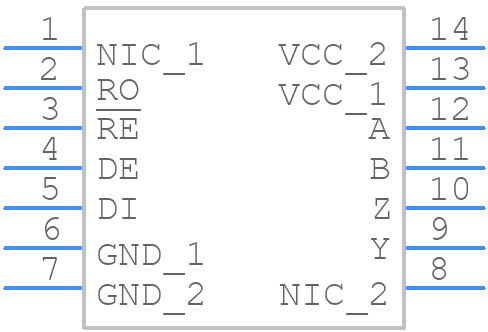

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADM3067EARZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)-8
click to zoom
3D Models
ADM3067EARZ-R7 - Analog Devices  - 3D model - Small Outline Packages - - 14-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-14)-8
click to zoom

ADM3067EARZ-R7 Details

  • Manufacturer Part Number:

    ADM3067EARZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00002 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    1.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Low Current-Max:

    0.002 A

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    35 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    15 ns

  • Width:

    3.9 mm

ADM3067EARZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3067EARZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the device should be placed near the connector to minimize the length of the input traces.
  • To ensure reliable operation of the ADM3067EARZ-R7 in high-temperature environments, it is essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • The ADM3067EARZ-R7 has built-in ESD protection, but it is still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD protection devices such as wrist straps and mats. Additionally, the device should be powered down during handling and assembly to prevent damage from ESD events.
  • To troubleshoot common issues with the ADM3067EARZ-R7, start by checking the power supply voltage and ensuring that it is within the specified range. Verify that the input and output connections are correct and that the device is properly configured. Check for any signs of physical damage or overheating. Use a oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for troubleshooting guides and FAQs.
  • When using the ADM3067EARZ-R7 in a redundant or fault-tolerant system, it is essential to ensure that the devices are properly synchronized and that the system can detect and respond to faults. This may involve using multiple devices in parallel, with each device connected to a separate power source and input signal. The system should be designed to detect faults and switch to a backup device in the event of a failure.
