ADM3067ETRZ-EP-R7 - Analog Devices

Description: 3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Full Duplex 50 Mbps RS-485 Transceiver

Download ADM3067ETRZ-EP-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

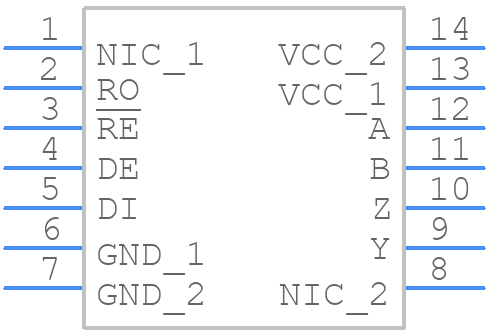

Symbol
ADM3067ETRZ-EP-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3067ETRZ-EP-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14
click to zoom
3D Models
ADM3067ETRZ-EP-R7 - Analog Devices - 3D model - Small Outline Packages - R-14
click to zoom

ADM3067ETRZ-EP-R7 Details

  • Manufacturer Part Number:

    ADM3067ETRZ-EP-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    35 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    172 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    15 ns

  • Width:

    3.9 mm

ADM3067ETRZ-EP-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3067ETRZ-EP-R7 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADM3067ETRZ-EP-R7 requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors. The device also requires a bias voltage on the VCC pin, which can be generated using a voltage divider or a dedicated voltage regulator.
  • The ADM3067ETRZ-EP-R7 is capable of supporting data rates up to 100 Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and noise environment.
  • The ADM3067ETRZ-EP-R7 has built-in ESD protection, but additional protection measures can be taken, such as using TVS diodes or ESD protection devices on the input and output lines, and ensuring that the device is properly grounded and decoupled.
  • The ADM3067ETRZ-EP-R7 is specified to operate over a temperature range of -40°C to +125°C, but the actual operating temperature range may be limited by the specific application and environment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3067ETRZ-EP-R7 Overview

Use the download button to access the ADM3067ETRZ-EP-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
