ADM3095EARZ - Analog Devices

Description: Level 4 EMC Protected RS-485 Transceiver with Full ±42 V Fault Protection

Download ADM3095EARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

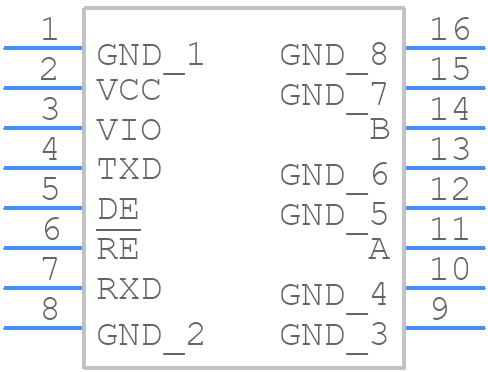

ADM3095EARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3095EARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16
click to zoom
3D Models
ADM3095EARZ - Analog Devices - 3D model - Small Outline Packages - R-16
click to zoom

ADM3095EARZ Details

  • Manufacturer Part Number:

    ADM3095EARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    220 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    500 ns

  • Width:

    3.9 mm

ADM3095EARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3095EARZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded enclosure and minimizing the number of vias can help reduce EMI.
  • To ensure proper decoupling, place a 0.1 μF ceramic capacitor between the VCC pin and the GND pin, and a 10 μF electrolytic capacitor between the VCC pin and the GND pin. This will help filter out high-frequency noise and ensure stable operation.
  • The maximum cable length for the ADM3095EARZ depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible (less than 1 meter) to minimize signal degradation and EMI.
  • The ADM3095EARZ is rated for operation up to 85°C, but it's not recommended to use it in high-temperature environments above 85°C without proper heat sinking and thermal management. Consult the datasheet and application notes for more information on thermal considerations.
  • To troubleshoot issues with the ADM3095EARZ, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals using an oscilloscope, and check for any signs of overheating or physical damage. Consult the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3095EARZ Overview

Use the download button to access the ADM3095EARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Line Driver or Receivers
