ADM3095EBRZ-RL7 - Analog Devices

Description: Level 4 EMC Protected RS-485 Transceiver with Full ±42 V Fault Protection.3V ~ 5.5V -40°C ~ 125°C 16-SOIC (0.154", 3.90mm Width)

Download ADM3095EBRZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

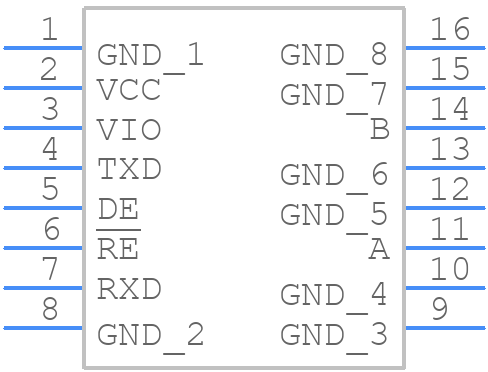

ADM3095EBRZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3095EBRZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADM3095EBRZ-RL7 - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADM3095EBRZ-RL7 Details

  • Manufacturer Part Number:

    ADM3095EBRZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-06-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    220 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    500 ns

  • Width:

    3.9 mm

ADM3095EBRZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3095EBRZ-RL7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 0.1uF decoupling capacitor between the VCC and GND pins.
  • To ensure reliable operation of the ADM3095EBRZ-RL7 in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range of -40°C to +125°C.
  • The maximum cable length that can be used with the ADM3095EBRZ-RL7 depends on the specific application and the type of cable used. However, as a general rule, it's recommended to keep the cable length as short as possible to minimize signal attenuation and electromagnetic interference (EMI). A cable length of up to 10 meters is typically acceptable, but longer cables may require additional signal conditioning or buffering.
  • The ADM3095EBRZ-RL7 is designed for high-speed data transmission and can support data rates of up to 100 Mbps. However, the actual data transmission speed may be limited by the specific application, cable length, and other system parameters. It's essential to evaluate the device's performance in the specific application to ensure reliable data transmission.
  • To troubleshoot common issues with the ADM3095EBRZ-RL7, it's essential to follow a systematic approach, starting with a visual inspection of the PCB and cable connections. Check for signs of physical damage, corrosion, or overheating. Use oscilloscopes or logic analyzers to verify signal integrity and data transmission. Additionally, review the system design and ensure that the device is operated within its specified parameters.
