ADM3095ETRZ-EP-R7 - Analog Devices

Description: Level 4 EMC Protected RS-485 Transceiver with Full ±42 V Fault Protection

Download ADM3095ETRZ-EP-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

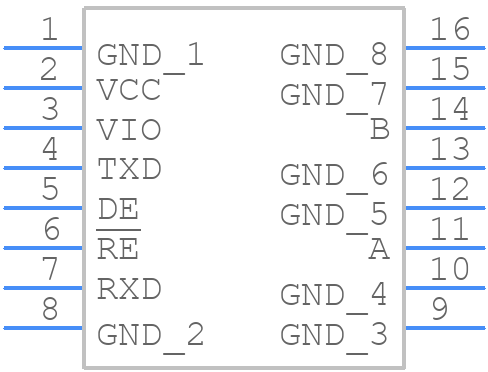

ADM3095ETRZ-EP-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3095ETRZ-EP-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16-1
click to zoom
3D Models
ADM3095ETRZ-EP-R7 - Analog Devices - 3D model - Small Outline Packages - R-16-1
click to zoom

ADM3095ETRZ-EP-R7 Details

  • Manufacturer Part Number:

    ADM3095ETRZ-EP-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Receive Delay-Max:

    220 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    500 ns

  • Width:

    3.9 mm

ADM3095ETRZ-EP-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3095ETRZ-EP-R7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the connector or cable to minimize EMI. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. The ADM3095ETRZ-EP-R7 is rated for operation up to 125°C, but derating may be necessary for extended reliability.
  • The ADM3095ETRZ-EP-R7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is powered down during handling. Additionally, consider adding external ESD protection devices, such as TVS diodes, for added protection.
  • While the ADM3095ETRZ-EP-R7 is designed for isolated applications, it can be used in non-isolated applications with proper consideration. However, this may compromise the device's EMI performance and reliability. It's essential to evaluate the device's performance in the specific application and ensure that it meets the required specifications.
  • To evaluate the ADM3095ETRZ-EP-R7, you'll need a combination of test and measurement equipment, including a signal generator, oscilloscope, and logic analyzer. Additionally, consider using a network analyzer for evaluating the device's frequency response and a spectrum analyzer for EMI testing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3095ETRZ-EP-R7 Overview

Use the download button to access the ADM3095ETRZ-EP-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
