ADM3095ETRZ-EP - Analog Devices

Description: Level 4 EMC Protected RS-485 Transceiver with Full ±42 V Fault Protection.3V ~ 5.5V -55°C ~ 125°C 16-SOIC (0.154", 3.90mm Width)

Download ADM3095ETRZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

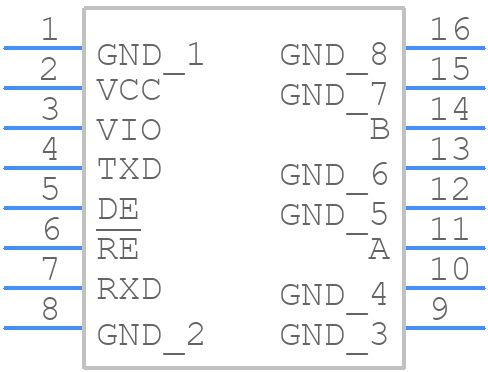

ADM3095ETRZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3095ETRZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16
click to zoom
3D Models
ADM3095ETRZ-EP - Analog Devices - 3D model - Small Outline Packages - R-16
click to zoom

ADM3095ETRZ-EP Details

  • Manufacturer Part Number:

    ADM3095ETRZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-485; TIA-485

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Receive Delay-Max:

    220 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    500 ns

  • Width:

    3.9 mm

ADM3095ETRZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3095ETRZ-EP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-0971 for more details.
  • Proper termination of high-speed signals is crucial for the ADM3095ETRZ-EP. Use a 50Ω termination resistor at the receiver end, and ensure that the transmission line is properly matched to the driver impedance. Also, use a common-mode termination resistor (e.g., 22Ω) at the receiver end for differential signals.
  • The maximum cable length supported by the ADM3095ETRZ-EP depends on the signal frequency, cable type, and termination. As a general guideline, for a 100MHz signal, the maximum cable length is around 10m for a Category 5e cable. However, this can vary depending on the specific application and environment.
  • The ADM3095ETRZ-EP has built-in ESD protection, but additional protection measures may be necessary depending on the application. Use ESD-sensitive handling procedures during assembly, and consider adding external ESD protection devices (e.g., TVS diodes) at the input/output pins if the device is exposed to harsh environments.
  • The recommended power-up sequence for the ADM3095ETRZ-EP is to power up the VCC supply first, followed by the VEE supply. This ensures that the internal biasing circuitry is properly initialized. Also, ensure that the input signals are not applied until both supplies are stable.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM3095ETRZ-EP Overview

Use the download button to access the ADM3095ETRZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM30, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
