ADM3101EACPZ-250R7 - Analog Devices

Description: Analog Devices ADM3101EACPZ-250R7, Line Transceiver, EIA/TIA-232E, 3.3 V, 12-Pin LFCSP

Download ADM3101EACPZ-250R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

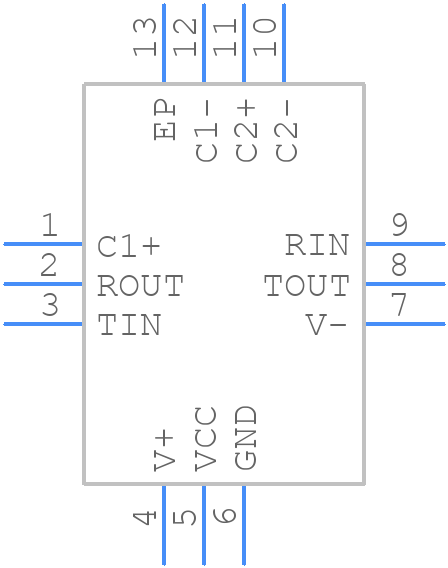

ADM3101EACPZ-250R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3101EACPZ-250R7 - Analog Devices PCB footprint - Other - Other - QFN50P300X300X100-13N
click to zoom
3D Models
ADM3101EACPZ-250R7 - Analog Devices - 3D model - Other - QFN50P300X300X100-13N
click to zoom

ADM3101EACPZ-250R7 Details

  • Manufacturer Part Number:

    ADM3101EACPZ-250R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-220VEED-1, LFCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    CP-12-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    DUMMY VAL

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.28

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

ADM3101EACPZ-250R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3101EACPZ-250R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADM3101EACPZ-250R7, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or a power inductor to filter out high-frequency noise.
  • For optimal performance, it's recommended to use a low-pass filter (e.g., RC filter) to condition the input signal and remove high-frequency noise. Additionally, consider using a voltage divider or an attenuator to adjust the input signal amplitude to the recommended range.
  • To troubleshoot issues with the ADM3101EACPZ-250R7, start by verifying the power supply and decoupling. Check the input signal quality and amplitude, and ensure the device is properly configured. Use an oscilloscope to visualize the input and output signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The ADM3101EACPZ-250R7 has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive PCB material, and avoiding high-power dissipation. Consult the datasheet for thermal resistance and power dissipation guidelines.
