ADM3101EARQZ - Analog Devices

Description: ADM3101EARQZ, Line Transceiver, EIA-232-E, RS-232, V.28, 3.3 V, 16-Pin QSOP

Download ADM3101EARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

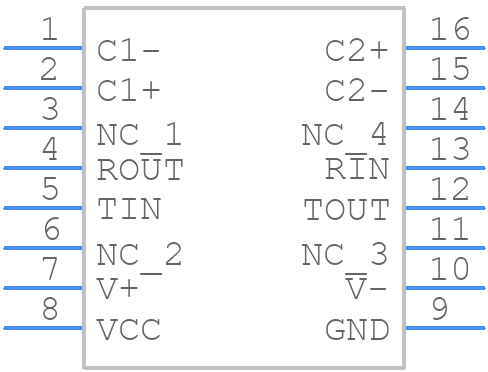

ADM3101EARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3101EARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead QSOP
click to zoom
3D Models
ADM3101EARQZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead QSOP
click to zoom

ADM3101EARQZ Details

  • Manufacturer Part Number:

    ADM3101EARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, MO-137-AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    DUMMY VAL

  • Differential Output:

    NO

  • Driver Number of Bits:

    1

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

ADM3101EARQZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3101EARQZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the device away from high-frequency sources can help minimize EMI.
  • To ensure reliable communication, make sure to use the correct baud rate, data bits, parity, and stop bits. Also, use a reliable serial communication protocol, such as UART or SPI, and implement error-checking mechanisms, such as checksums or CRCs.
  • The maximum cable length for the ADM3101EARQZ's serial interface depends on the baud rate and the type of cable used. As a general rule, the maximum cable length is around 10-15 meters at 9600 bps, but it can be shorter at higher baud rates. It's recommended to use a cable with a shielded twisted pair and a maximum capacitance of 250 pF/m.
  • The ADM3101EARQZ's POR and BOR features can be handled by using an external reset circuit, such as a voltage supervisor, to ensure that the device is properly reset during power-up and power-down sequences. Additionally, the device's reset output can be used to reset other devices in the system.
  • The ADM3101EARQZ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 85°C. A thermal pad on the bottom of the package helps to dissipate heat, and a heat sink or thermal interface material can be used to further reduce the junction temperature.
