ADM3202AN - Analog Devices

Description: High-Speed, 2-Channel RS232/V.28 Interface Devices

Download ADM3202AN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADM3202AN - Analog Devices - PCB symbol
click to zoom
PCB Footprints

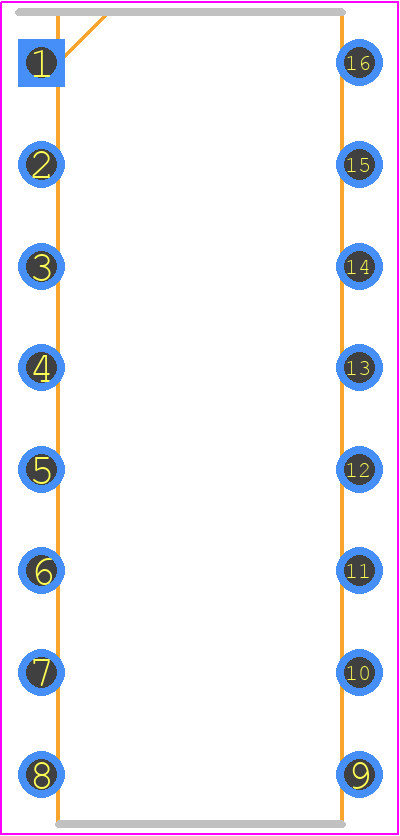

ADM3202AN - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - AD605ANZaaa
click to zoom
3D Models
ADM3202AN - Analog Devices - 3D model - Dual-In-Line Packages - AD605ANZaaa
click to zoom

ADM3202AN Details

  • Manufacturer Part Number:

    ADM3202AN

  • Source Url Status Check Date:

    2013-05-01 14:56:41.195

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MS-001, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    20.07 mm

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    5 V

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    1200 ns

  • Width:

    7.62 mm

ADM3202AN Frequently Asked Questions (FAQs)

  • The ADM3202AN is a high-speed device, and proper layout and placement are crucial to minimize EMI and noise. It is recommended to place the device close to the connector, use a solid ground plane, and keep the signal traces short and away from the power planes. Additionally, use a common-mode filter or a ferrite bead to filter out high-frequency noise.
  • To ensure reliable operation of the ADM3202AN in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
  • The recommended power-up sequence for the ADM3202AN is to apply the power supplies (VCC and VEE) simultaneously, with VCC rising first. This ensures that the internal circuitry is properly biased and prevents latch-up or damage. It is also recommended to use a power-on reset (POR) circuit to ensure that the device is properly reset during power-up.
  • To troubleshoot issues with the ADM3202AN, start by verifying the power supply voltages and ensuring that they are within the recommended specifications. Check the signal integrity and quality of the transmit and receive signals, and verify that the device is properly configured and initialized. Use a logic analyzer or oscilloscope to capture and analyze the signals, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • When using the ADM3202AN in a system with multiple transceivers, it is essential to ensure proper operation and minimize interference. This can be achieved by using a common-mode filter or a ferrite bead to filter out high-frequency noise, and by using a separate ground plane for each transceiver. Additionally, consider using a transceiver with a built-in echo canceller or a hybrid circuit to minimize echo and improve signal quality.
