ADM3222ARWZ-REEL7 - Analog Devices

Description: Dual Transmitter/Receiver RS-232 18-Pin SOIC W T/R

Download ADM3222ARWZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

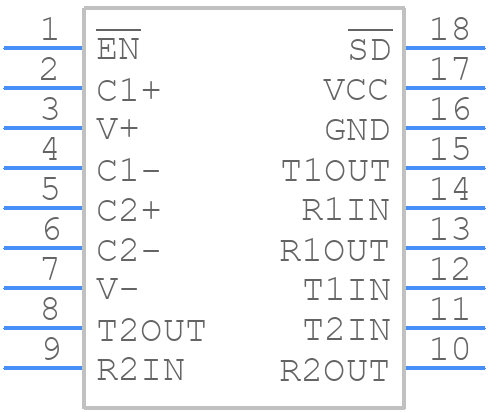

Symbol
ADM3222ARWZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3222ARWZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-18 (SOIC)
click to zoom
3D Models
ADM3222ARWZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RW-18 (SOIC)
click to zoom

ADM3222ARWZ-REEL7 Details

  • Manufacturer Part Number:

    ADM3222ARWZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AB, SOIC-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    RW-18

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    1200 ns

  • Width:

    7.5 mm

ADM3222ARWZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3222ARWZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure the ADM3222ARWZ-REEL7 operates within its recommended operating conditions, monitor the device's junction temperature, supply voltage, and input/output signal levels. Ensure the device is operated within the specified temperature range (-40°C to 125°C) and supply voltage range (2.7V to 5.5V).
  • To mitigate EMI and RFI when using the ADM3222ARWZ-REEL7, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the input/output lines. Additionally, ensure good PCB layout practices, such as minimizing trace lengths and using a solid ground plane.
  • To troubleshoot issues with the ADM3222ARWZ-REEL7, start by verifying the device's power supply, input/output connections, and PCB layout. Check for any signs of overheating, electrical overstress, or physical damage. Use an oscilloscope to monitor the output voltage and input signals, and consult the datasheet and application notes for guidance.
  • Operating the ADM3222ARWZ-REEL7 at the upper end of its specified temperature range (125°C) may affect its performance, reliability, and lifespan. The device's output voltage accuracy, noise performance, and power consumption may degrade, and the device may be more susceptible to thermal shutdown or failure.
