ADM3252EABCZ - Analog Devices

Description: Analog Devices ADM3252EABCZ, Line Transceiver, EIA/TIA-232-E 2-TX 2-RX, 3.3 V, 5 V, 44-Pin BGA

Download ADM3252EABCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

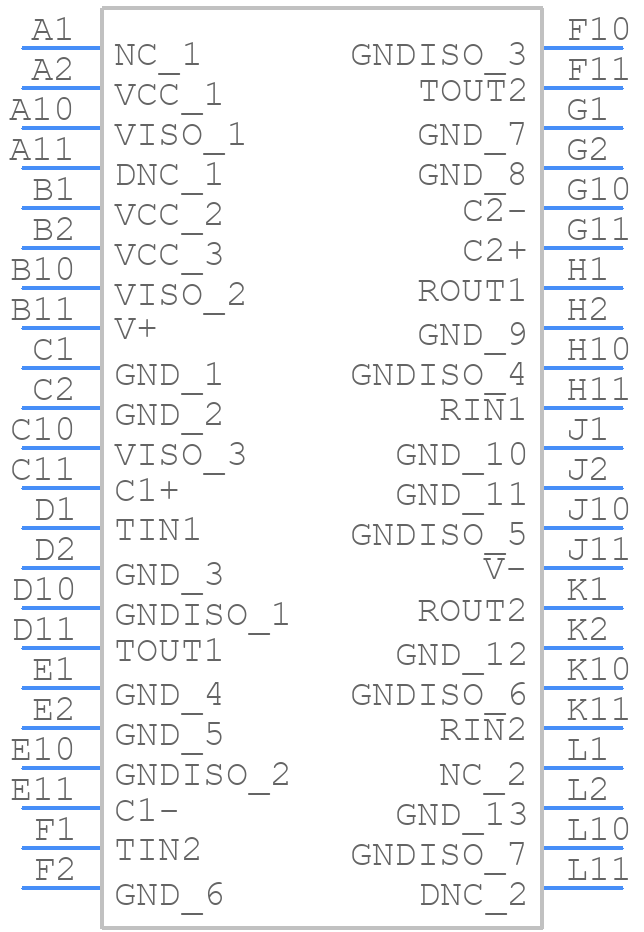

ADM3252EABCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM3252EABCZ - Analog Devices PCB footprint - BGA - BGA - 44-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-44-1)
click to zoom
3D Models
ADM3252EABCZ - Analog Devices - 3D model - BGA - 44-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-44-1)
click to zoom

ADM3252EABCZ Details

  • Manufacturer Part Number:

    ADM3252EABCZ

  • Source Url Status Check Date:

    2013-05-01 14:56:41.368

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    BC-44-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E

  • JESD-30 Code:

    S-PBGA-B44

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.004 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA44,11X11,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max:

    75 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Transmit Delay-Max:

    1200 ns

  • Width:

    12 mm

ADM3252EABCZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM3252EABCZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the connector to minimize noise. Additionally, using a shielded cable and keeping the cable length short can help reduce EMI.
  • To ensure reliable data transmission over the RS-232 interface, use a shielded cable, keep the cable length short, and use a baud rate that is within the device's specifications. Also, ensure that the transmitter and receiver are properly terminated and that the signal levels are within the recommended range.
  • The maximum cable length supported by the ADM3252EABCZ is approximately 50 feet (15.24 meters) at a baud rate of 115.2 kbps. However, the actual cable length may vary depending on the specific application and environment.
  • The ADM3252EABCZ's POR and BOR features can be handled by using an external reset circuit or by using a microcontroller to monitor the power supply voltage and reset the device when necessary. Additionally, the device's reset pin can be connected to a capacitor to filter out noise and ensure a clean reset signal.
  • The ADM3252EABCZ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and adequate heat sinking should be provided to prevent overheating. A thermal pad or heat sink can be used to dissipate heat.
