ADM690AANZ - Analog Devices

Description: ADM690AANZ, Processor Supervisor 4.65 V Active Low, Push-Pull, 8-Pin PDIP

Download ADM690AANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

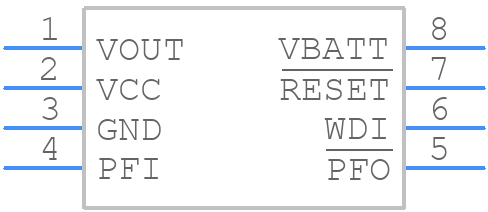

ADM690AANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM690AANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP_8
click to zoom
3D Models
ADM690AANZ - Analog Devices - 3D model - Dual-In-Line Packages - PDIP_8
click to zoom

ADM690AANZ Details

  • Manufacturer Part Number:

    ADM690AANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Width:

    7.62 mm

ADM690AANZ Frequently Asked Questions (FAQs)

  • The ADM690AANZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • Proper bypassing is critical for the ADM690AANZ. It is recommended to use a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor, both connected between the VIN pin and the GND pin, as close to the device as possible. Additionally, a 100nF ceramic capacitor can be used between the VOUT pin and the GND pin to further reduce noise.
  • The ADM690AANZ can handle input voltages up to 15V, but it is recommended to operate the device within the specified input voltage range of 4.5V to 12V for optimal performance and reliability.
  • The ADM690AANZ is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. It is also recommended to use a heat sink or thermal pad to dissipate heat and reduce the junction temperature.
  • To troubleshoot issues with the ADM690AANZ, it is recommended to check the input voltage, output voltage, and output current to ensure they are within the specified ranges. Check for proper bypassing, layout, and thermal management. Use an oscilloscope to check for noise and oscillations on the input and output lines. Consult the datasheet and application notes for troubleshooting guidelines and fault detection methods.
