ADM691AANZ - Analog Devices

Description: ADM691AANZ, Processor Supervisor 4.75 → 5.5 V Active High, Active Low, Open Drain, Push-Pull, 16-Pin PDIP

Download ADM691AANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

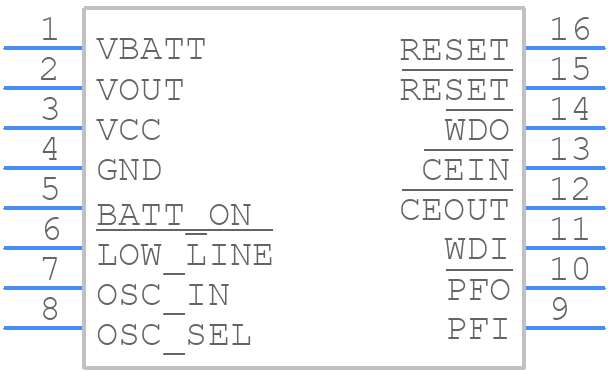

ADM691AANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

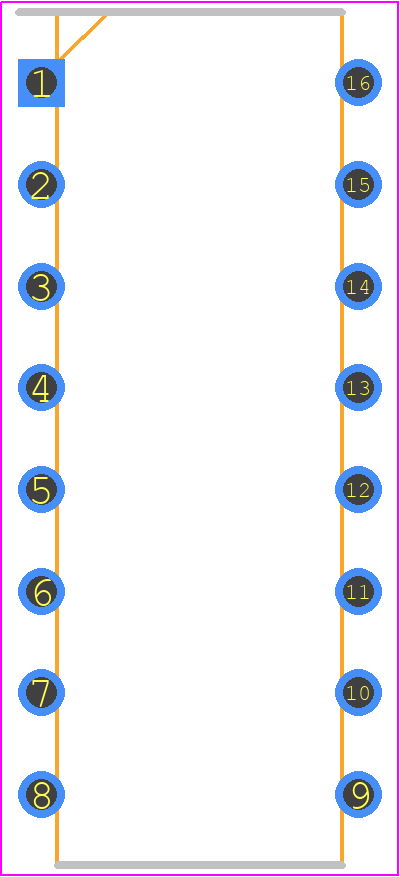

ADM691AANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Pin Plastic DIP
click to zoom
3D Models
ADM691AANZ - Analog Devices - 3D model - Dual-In-Line Packages - 16-Pin Plastic DIP
click to zoom

ADM691AANZ Details

  • Manufacturer Part Number:

    ADM691AANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:Y;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    4.75 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Width:

    7.62 mm

ADM691AANZ Frequently Asked Questions (FAQs)

  • It is recommended to place the ADM691AANZ close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise. Additionally, use a 10nF capacitor between the VIN and GND pins to filter out high-frequency noise.
  • The ADM691AANZ requires a power-up sequence of EN (enable) pin going high before the VIN (input voltage) pin. The EN pin should be tied to a logic high signal or a pull-up resistor to ensure proper initialization.
  • The ADM691AANZ can handle input voltages up to 15V, but it's recommended to operate within the specified range of 4.5V to 12V for optimal performance and reliability.
  • The output voltage of the ADM691AANZ can be adjusted by connecting a resistive divider network between the VOUT pin and the ADJ pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula provided in the datasheet.
  • The typical dropout voltage of the ADM691AANZ is around 1.5V, which means the input voltage must be at least 1.5V higher than the output voltage for the regulator to operate within its specified range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM691AANZ Overview

Use the download button to access the ADM691AANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
