ADM691ANZ - Analog Devices

Description: Analog Devices ADM691ANZ, Processor Supervisor 4.75 → 5.5 V, WDT, 16-Pin PDIP

Download ADM691ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

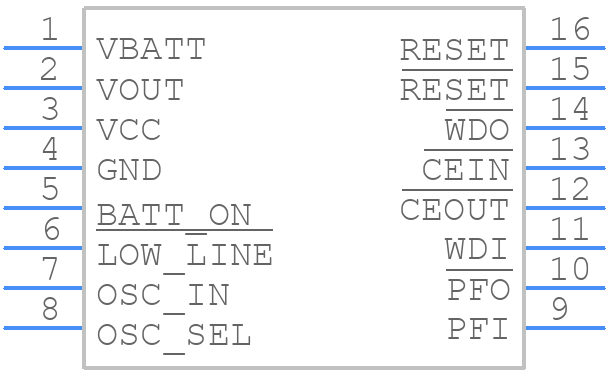

ADM691ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

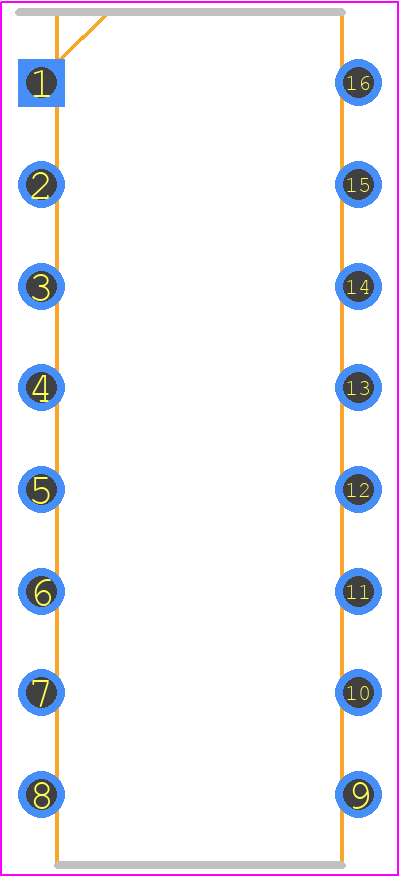

ADM691ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_2020
click to zoom
3D Models
ADM691ANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16_2020
click to zoom

ADM691ANZ Details

  • Manufacturer Part Number:

    ADM691ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    RESET CONTROL

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Width:

    7.62 mm

ADM691ANZ Frequently Asked Questions (FAQs)

  • A good PCB layout for ADM691ANZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, make sure the input voltage is within the recommended range (2.7V to 5.5V) and the output load is within the recommended range (1kΩ to 10kΩ).
  • The ADM691ANZ can operate over a temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • To prevent electrostatic discharge (ESD) damage, handle the device by the body or use an anti-static wrist strap. Also, ensure the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
