ADM692AANZ - Analog Devices

Description: Precision Supply Voltage Monitor 4.65 V ADM690A/ADM802L/ADM805L 4.40 V ADM692A/ADM802M/ADM805M Reset Assertion Down to 1 V VCC Reset Timeout—200 ms Watchdog Timer—1.6 s 100 mA Quiescent Supply Current Automatic Battery Backup Power Switching Voltage Monitor for Power Fail 62% Power Fail Accuracy on ADM802L/M Space-Saving MicroSOIC Package (ADM690A)

Download ADM692AANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

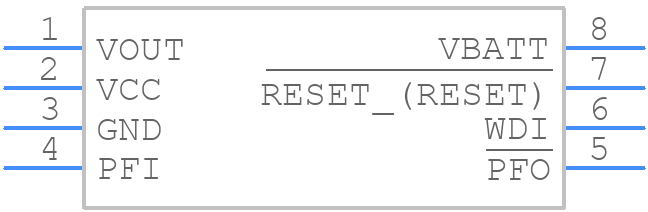

ADM692AANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM692AANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-8)
click to zoom
3D Models
ADM692AANZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-8)
click to zoom

ADM692AANZ Details

  • Manufacturer Part Number:

    ADM692AANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Width:

    7.62 mm

ADM692AANZ Frequently Asked Questions (FAQs)

  • It is recommended to place the ADM692AANZ close to the power source, use a solid ground plane, and keep the input and output traces as short as possible. Additionally, use a 10uF ceramic capacitor between the VIN pin and GND pin to filter out high-frequency noise.
  • The ADM692AANZ has a power-on reset (POR) circuit that ensures the device is properly initialized during startup. However, it's recommended to add an external capacitor (typically 1uF to 10uF) between the EN pin and GND pin to filter out any noise on the enable input.
  • The ADM692AANZ has an absolute maximum input voltage rating of 12V. Exceeding this voltage can damage the device. It's recommended to add overvoltage protection (OVP) circuitry to prevent damage from voltage transients or surges.
  • To optimize output voltage accuracy and stability, use a high-quality output capacitor (typically 10uF to 22uF) with low ESR, and ensure the output voltage is within the recommended range (1.8V to 5.5V). Additionally, minimize the distance between the output capacitor and the load to reduce output voltage droop.
  • The ADM692AANZ has a thermal derating of 12mW/°C above 25°C. This means that the device's power dissipation capability decreases as the ambient temperature increases. To ensure reliable operation, it's essential to consider the thermal derating when designing the system and provide adequate heat sinking or thermal management.
