ADM693AANZ - Analog Devices

Description: Analog Devices ADM693AANZ, Processor Supervisor 4.5 → 5.5 V, WDT, 16-Pin PDIP

Download ADM693AANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

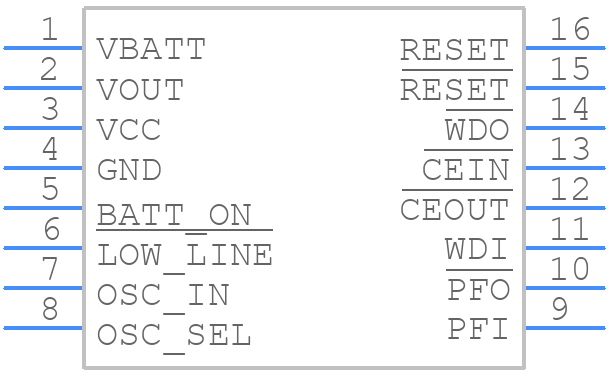

Symbol
ADM693AANZ - Analog Devices - PCB symbol
click to zoom

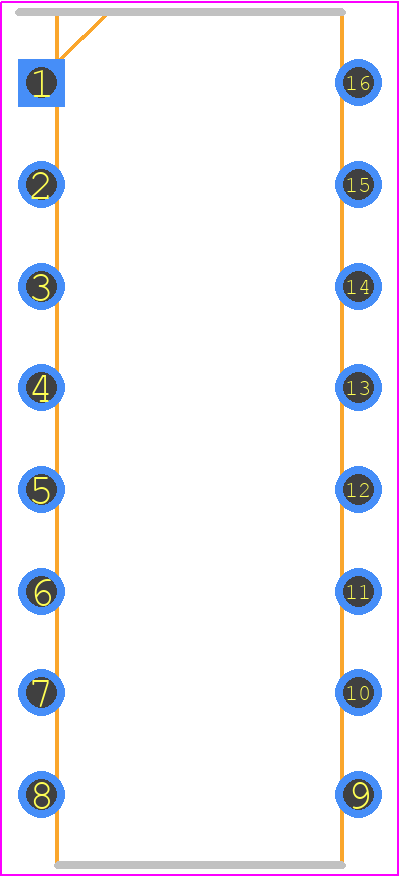

PCB Footprints
ADM693AANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-16_2020
click to zoom
3D Models
ADM693AANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-16_2020
click to zoom

ADM693AANZ Details

  • Manufacturer Part Number:

    ADM693AANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    N-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:Y;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Width:

    7.62 mm

ADM693AANZ Frequently Asked Questions (FAQs)

  • The ADM693AANZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to place the device close to the power source, use short traces, and avoid routing signals under the device. Additionally, a solid ground plane and decoupling capacitors should be used to minimize noise and ensure stability.
  • The ADM693AANZ requires a specific bias voltage and configuration to operate correctly. It is recommended to consult the datasheet and application notes for specific guidance on biasing and configuration. Additionally, Analog Devices provides evaluation boards and software tools to help with configuration and testing.
  • The ADM693AANZ has a maximum operating temperature range of -40°C to +125°C. It is essential to ensure good thermal conductivity between the device and the PCB, and to provide adequate heat sinking and airflow to prevent overheating. The device's thermal resistance and power dissipation should be considered during the design process.
  • Troubleshooting issues with the ADM693AANZ requires a systematic approach. Start by verifying the power supply and biasing, then check the layout and routing for any potential issues. Use oscilloscopes and other measurement tools to identify the source of the problem. Consult the datasheet, application notes, and Analog Devices' support resources for guidance on troubleshooting and debugging.
  • The ADM693AANZ is a high-frequency device and can be susceptible to EMI/EMC issues. It is essential to follow proper PCB design and layout practices, use shielding and filtering, and ensure that the device is properly grounded and decoupled. Additionally, consult the datasheet and application notes for specific guidance on EMI/EMC considerations, and ensure that the design meets relevant regulatory requirements such as FCC and CE.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM693AANZ Overview

Use the download button to access the ADM693AANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
