ADM693AARWZ-REEL - Analog Devices

Description: Supervisory Circuits 5V CMOS I.C.

Download ADM693AARWZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

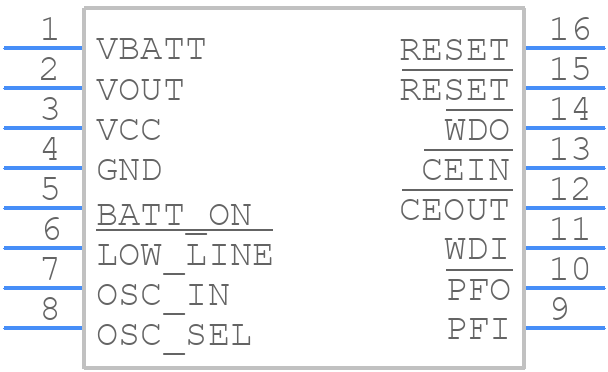

ADM693AARWZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM693AARWZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-16W)
click to zoom
3D Models
ADM693AARWZ-REEL - Analog Devices - 3D model - Small Outline Packages - (R-16W)
click to zoom

ADM693AARWZ-REEL Details

  • Manufacturer Part Number:

    ADM693AARWZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:Y;WD:Y;WDO:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC
