ADM696ARZ - Analog Devices

Description: ADM696ARZ, Processor Supervisor 3 → 5.5 V Active High, Active Low, Push-Pull, 16-Pin SOIC W

Download ADM696ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

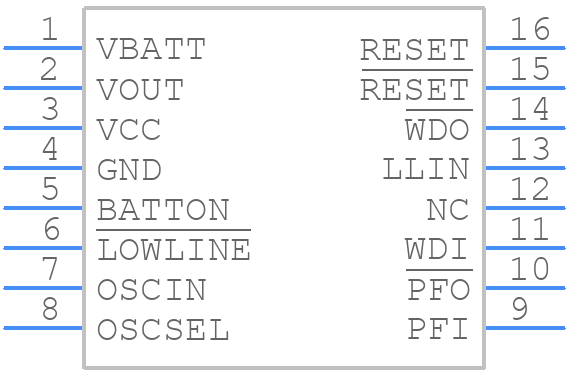

Symbol
ADM696ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM696ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16(SOIC)_2
click to zoom
3D Models
ADM696ARZ - Analog Devices - 3D model - Small Outline Packages - R-16(SOIC)_2
click to zoom

ADM696ARZ Details

  • Manufacturer Part Number:

    ADM696ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.25 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM696ARZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 0.1 μF) between VCC and GND, and a 10 μF capacitor between VCC and AVCC.
  • Use a level translator (e.g., 74LVC1T45) to match the voltage levels between the ADM696ARZ (3.3V) and the microcontroller (e.g., 5V). Ensure proper signal termination and use a pull-up resistor (e.g., 1 kΩ) on the SDA line.
  • The maximum cable length depends on the capacitance of the cable and the clock frequency. As a rule of thumb, keep the cable length below 20 cm (8 inches) for a 400 kHz clock frequency. Use a shielded cable and terminate the bus with a 1 kΩ pull-up resistor.
  • Connect a capacitor (e.g., 0.1 μF) between VCC and GND to filter out noise. Ensure a clean power-up sequence by using a power-on reset circuit or a supervisor IC (e.g., ADM803). The BOR threshold is 2.2V; ensure the power supply voltage is above this threshold.
  • The recommended operating temperature range is -40°C to +85°C. However, the device can operate up to +125°C with reduced accuracy and reliability. Ensure proper thermal management and heat dissipation in your design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM696ARZ Overview

Use the download button to access the ADM696ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
