ADM697ARZ - Analog Devices

Description: ADM697ARZ, Processor Supervisor 3 → 5.5 V Active High, Active Low, Push-Pull, 16-Pin SOIC W

Download ADM697ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

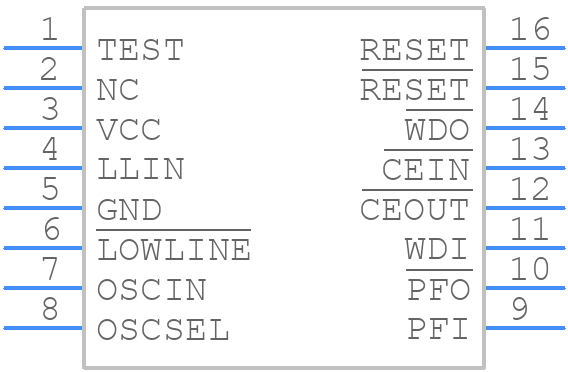

ADM697ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM697ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16(SOIC)_2
click to zoom
3D Models
ADM697ARZ - Analog Devices - 3D model - Small Outline Packages - R-16(SOIC)_2
click to zoom

ADM697ARZ Details

  • Manufacturer Part Number:

    ADM697ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.25 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM697ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM697ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the ADM697ARZ, use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) between the VCC and GND pins, and a 0.1uF ceramic capacitor between the AVCC and AGND pins. Also, use a separate power plane for the analog and digital sections.
  • The recommended input signal range for the ADM697ARZ is 0V to VREF (typically 2.5V or 5V). Signals outside this range may not be accurately converted or may cause the ADC to malfunction.
  • The ADM697ARZ's digital output data is in 2's complement format. To handle the output data, use a microcontroller or FPGA to read the data and perform any necessary processing, such as scaling or offset correction.
  • The maximum sampling rate of the ADM697ARZ is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency and the conversion time of the ADC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM697ARZ Overview

Use the download button to access the ADM697ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM69, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
