ADM699ANZ - Analog Devices

Description: Microprocessor Supervisory Circuits

Download ADM699ANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

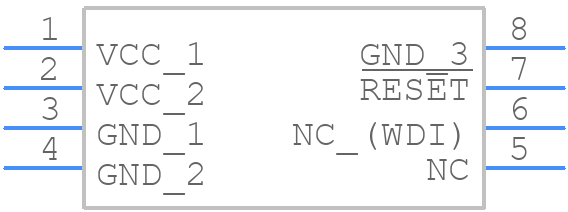

ADM699ANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM699ANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8pin dip
click to zoom
3D Models
ADM699ANZ - Analog Devices - 3D model - Dual-In-Line Packages - 8pin dip
click to zoom

ADM699ANZ Details

  • Manufacturer Part Number:

    ADM699ANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADM699ANZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM699ANZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known voltage to the input pins and adjusting the internal voltage reference. It's also important to use a high-precision voltage source and a calibrated multimeter for accurate measurements.
  • The maximum cable length for the ADM699ANZ's voltage monitoring inputs is typically around 10 feet (3 meters). If a longer cable length is needed, consider using a shielded cable, a repeater, or an isolator to minimize signal degradation and noise pickup.
  • The ADM699ANZ is rated for operation up to 125°C, but its accuracy and reliability may degrade at higher temperatures. It's essential to follow the recommended operating conditions and consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure reliable operation.
  • To troubleshoot issues with the ADM699ANZ, start by verifying the power supply voltage, checking for proper PCB layout and grounding, and ensuring correct input voltage ranges. Use a logic analyzer or oscilloscope to debug the digital outputs, and consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM699ANZ Overview

Use the download button to access the ADM699ANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM69, or try a keyword search, such as Power Management Circuits
