ADM708ARMZ - Analog Devices

Description: Processor Supervisor 4.4V 250uA 8-MSOP

Download ADM708ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

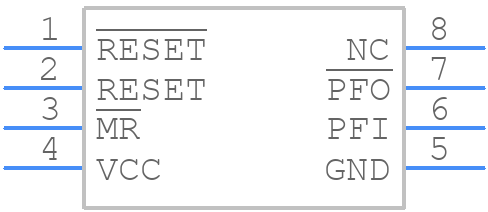

Symbol
ADM708ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM708ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)_2020
click to zoom
3D Models
ADM708ARMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)_2020
click to zoom

ADM708ARMZ Details

  • Manufacturer Part Number:

    ADM708ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    LEAD FREE, M0-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Width:

    3 mm
