ADM708RANZ - Analog Devices

Description: ADM708RANZ, Processor Supervisor 2.5 V, 3 V, 3.3 V, 5 V Active High, Active Low, Push-Pull, reset 8-Pin PDIP

Download ADM708RANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

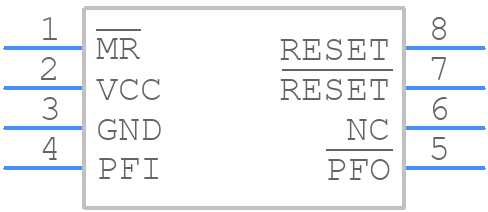

ADM708RANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM708RANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8
click to zoom
3D Models
ADM708RANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8
click to zoom

ADM708RANZ Details

  • Manufacturer Part Number:

    ADM708RANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    MNL RST:Y;PW FL IO:Y;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.35 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.63V

  • Width:

    7.62 mm

ADM708RANZ Frequently Asked Questions (FAQs)

  • The ADM708RANZ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and coupling. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • The ADM708RANZ requires a specific bias voltage and configuration to operate correctly. It is recommended to follow the datasheet guidelines for biasing and configuration, and to consult the application notes and evaluation board documentation for specific examples and recommendations. Additionally, it is recommended to consult with Analog Devices' technical support team for specific guidance on biasing and configuration for your application.
  • The ADM708RANZ has a specified operating temperature range of -40°C to +125°C. To ensure the device operates within this range, it is recommended to provide adequate heat sinking and thermal management. This can include using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, it is recommended to follow the datasheet guidelines for thermal resistance and junction temperature to ensure the device operates within its specified temperature range.
  • To troubleshoot issues with the ADM708RANZ, it is recommended to follow a systematic approach to identify the root cause of the issue. This can include checking the power supply, biasing, and configuration, as well as verifying the input and output signals. Additionally, it is recommended to consult the datasheet, application notes, and evaluation board documentation for specific troubleshooting guidance. If the issue persists, it is recommended to consult with Analog Devices' technical support team for further assistance.
  • The ADM708RANZ is a sensitive device and requires proper ESD protection and handling to prevent damage. It is recommended to follow standard ESD handling procedures, including using ESD-safe workstations, wrist straps, and packaging materials. Additionally, it is recommended to follow the datasheet guidelines for ESD protection and handling, and to consult with Analog Devices' technical support team for specific guidance on ESD protection and handling for your application.
