ADM709LANZ - Analog Devices

Description: ADM709LANZ, Processor Supervisor 3 V, 3.3 V, 5 V Active Low, Push-Pull, 8-Pin PDIP

Download ADM709LANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

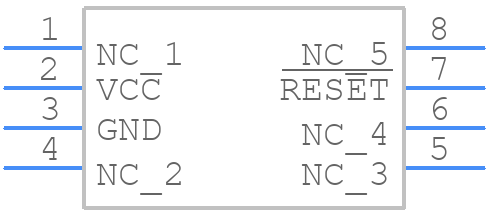

Symbol
ADM709LANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM709LANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8pin dip
click to zoom
3D Models
ADM709LANZ - Analog Devices - 3D model - Dual-In-Line Packages - 8pin dip
click to zoom

ADM709LANZ Details

  • Manufacturer Part Number:

    ADM709LANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Width:

    7.62 mm

ADM709LANZ Frequently Asked Questions (FAQs)

  • The ADM709LANZ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and coupling. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The ADM709LANZ requires a specific bias voltage and configuration to operate correctly. It is recommended to follow the application circuit shown in the datasheet and to use the recommended bias resistors and capacitors. Additionally, the device requires a specific input voltage range and output voltage range, which should be carefully selected based on the application requirements.
  • The ADM709LANZ has a maximum junction temperature of 150°C and a recommended operating temperature range of -40°C to 125°C. To ensure the device operates within the recommended temperature range, it is recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid high-power dissipation in the device. Additionally, it is recommended to use thermal simulation tools to estimate the device temperature and ensure it operates within the recommended range.
  • To troubleshoot common issues with the ADM709LANZ, it is recommended to follow a systematic approach. First, verify that the device is properly biased and configured, and that the input voltage and output voltage are within the recommended ranges. Next, check for any signs of overheating, such as excessive temperature or thermal shutdown. Finally, use oscilloscopes and other diagnostic tools to measure the output voltage and identify any sources of noise or instability.
  • The ADM709LANZ is a sensitive device and requires careful consideration of EMI and EMC to ensure compliance with regulatory requirements. It is recommended to use a shielded enclosure, keep the input and output traces short and separate, and use EMI filters and shielding to reduce radiated emissions. Additionally, it is recommended to follow the guidelines and regulations of the relevant regulatory bodies, such as the FCC and CE, to ensure compliance with EMI and EMC requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM709LANZ Overview

Use the download button to access the ADM709LANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM70, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
