ADM709MANZ - Analog Devices

Description: Analog Devices ADM709MANZ, Processor Supervisor 3 V, 3.3 V, 5 V, 8-Pin PDIP

Download ADM709MANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

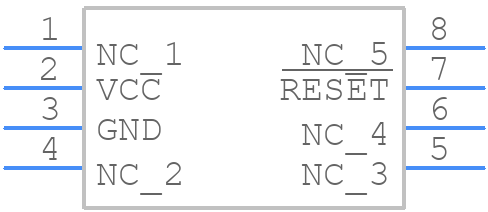

ADM709MANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM709MANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Lead Plastic DIP (N-8)-a
click to zoom
3D Models
ADM709MANZ - Analog Devices - 3D model - Dual-In-Line Packages - 8-Lead Plastic DIP (N-8)-a
click to zoom

ADM709MANZ Details

  • Manufacturer Part Number:

    ADM709MANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

ADM709MANZ Frequently Asked Questions (FAQs)

  • The ADM709MANZ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and interference.
  • The output voltage tolerance of the ADM709MANZ is ±2%. To handle this tolerance, it is recommended to design the system with a margin of at least ±2% to ensure that the output voltage remains within the required specifications.
  • The maximum input voltage that the ADM709MANZ can handle is 15V. Exceeding this voltage can damage the device. It is recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the specified range.
  • To ensure the stability of the output voltage of the ADM709MANZ, it is recommended to use a capacitor with a value of at least 10uF at the output pin, and to minimize the output impedance of the device by using a low-ESR capacitor.
  • The thermal shutdown temperature of the ADM709MANZ is 150°C. If the device temperature exceeds this value, it will shut down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM709MANZ Overview

Use the download button to access the ADM709MANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM70, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
