ADM7154ACPZ-3.0-R7 - Analog Devices

Description: LDO Voltage Regulators 600mA Ultra-Low-Noise High-PSRR LDO

Download ADM7154ACPZ-3.0-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

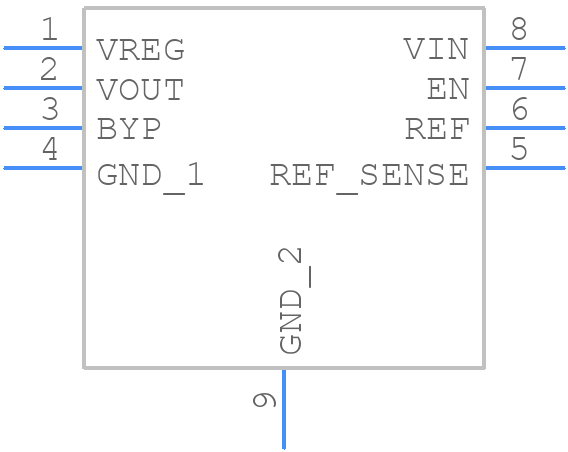

ADM7154ACPZ-3.0-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM7154ACPZ-3.0-R7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-8-21
click to zoom
3D Models
ADM7154ACPZ-3.0-R7 - Analog Devices - 3D model - Small Outline No-lead - CP-8-21
click to zoom

ADM7154ACPZ-3.0-R7 Details

  • Manufacturer Part Number:

    ADM7154ACPZ-3.0-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    CP-8-21

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.21 V

  • Dropout Voltage1-Nom:

    0.12 V

  • Input Voltage Absolute-Max:

    7 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.003288%

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.6 A

  • Output Voltage1-Max:

    3.06 V

  • Output Voltage1-Min:

    2.94 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    PMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    3 mm

ADM7154ACPZ-3.0-R7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADM7154ACPZ-3.0-R7 can be found in the Analog Devices application note AN-1079, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The output voltage tolerance of the ADM7154ACPZ-3.0-R7 can be calculated by considering the initial accuracy, temperature coefficient, and line regulation specifications provided in the datasheet. A detailed calculation example can be found in the Analog Devices application note AN-1149.
  • The maximum input voltage that can be applied to the ADM7154ACPZ-3.0-R7 is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
  • To ensure the ADM7154ACPZ-3.0-R7 is stable and reliable in your design, follow the recommended operating conditions, PCB layout guidelines, and component selection guidelines provided in the datasheet and application notes. Additionally, perform thorough testing and validation of your design to ensure it meets the required specifications and standards.
  • The thermal shutdown temperature of the ADM7154ACPZ-3.0-R7 is typically 150°C, as specified in the datasheet. When the junction temperature exceeds this value, the device will shut down to prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM7154ACPZ-3.0-R7 Overview

Use the download button to access the ADM7154ACPZ-3.0-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM71, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
