ADM805LANZ - Analog Devices

Description: ADM805LANZ, Processor Supervisor 4.65 V Active High, Push-Pull, 8-Pin PDIP

Download ADM805LANZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

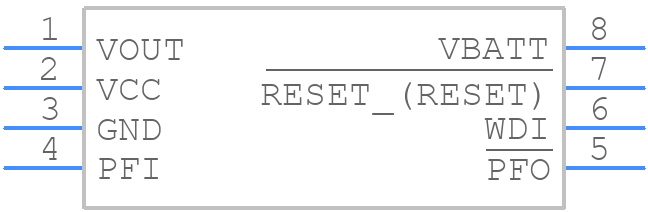

Symbol
ADM805LANZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM805LANZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-8_2
click to zoom
3D Models
ADM805LANZ - Analog Devices - 3D model - Dual-In-Line Packages - N-8_2
click to zoom

ADM805LANZ Details

  • Manufacturer Part Number:

    ADM805LANZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.88 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Width:

    7.62 mm

ADM805LANZ Frequently Asked Questions (FAQs)

  • The ADM805LANZ requires careful layout and placement to ensure proper operation. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and EMI. A 4-layer PCB with a dedicated ground plane is recommended.
  • The ADM805LANZ has a specific power-up and power-down sequence requirement. It is recommended to power up the device in the following sequence: VCC, then EN, and power down in the reverse sequence: EN, then VCC. This ensures proper operation and prevents damage to the device.
  • The ADM805LANZ supports cable lengths up to 100 meters, but this can vary depending on the specific application and cable quality. It is recommended to use high-quality Category 5e or higher cables to ensure reliable operation.
  • Yes, the ADM805LANZ can be used in a redundant or backup power system. The device has a built-in hot swap capability, which allows it to seamlessly switch between primary and backup power sources without interrupting the output.
  • Common issues with the ADM805LANZ can be troubleshooted by checking the input voltage, output voltage, and current consumption. Ensure that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM805LANZ Overview

Use the download button to access the ADM805LANZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM80, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
