ADM805LARNZ - Analog Devices

Description: Processor Supervisor 4.65V 100uA 8-SOIC

Download ADM805LARNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

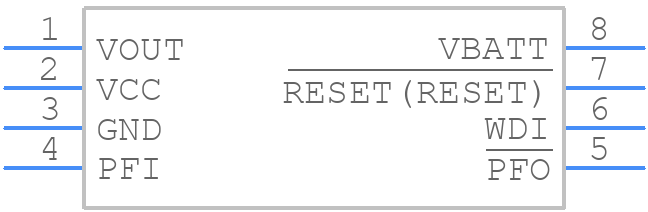

ADM805LARNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM805LARNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-SOIC_2020-3
click to zoom
3D Models
ADM805LARNZ - Analog Devices - 3D model - Small Outline Packages - 8-SOIC_2020-3
click to zoom

ADM805LARNZ Details

  • Manufacturer Part Number:

    ADM805LARNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    MNL RST:N;PW FL IO:Y;PRG RST DLY:N;WD:Y;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM805LARNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM805LARNZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded enclosure and minimizing the length of the input and output cables can help reduce EMI.
  • To ensure proper decoupling, place a 0.1uF ceramic capacitor between the VIN pin and the GND pin, and a 10uF electrolytic capacitor between the VIN pin and the GND pin. This will help filter out high-frequency noise and ensure stable operation.
  • The ADM805LARNZ is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal management guidelines for more information.
  • Yes, the ADM805LARNZ is designed for high-reliability applications and meets various industry standards for safety and reliability, such as AEC-Q100 and IEC 60601-1. However, it's essential to consult the datasheet and relevant industry standards to ensure compliance with specific requirements.
  • To troubleshoot issues with the ADM805LARNZ, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly decoupled and that the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
