ADM8321WCY46ARJZR7 - Analog Devices

Description: Supervisory Circuit with Watchdog, Active-Low Open-Drain and Active-High Push-Pull Reset Outputs -40°C ~ 125°C,4.63V,SC-74A

Download ADM8321WCY46ARJZR7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

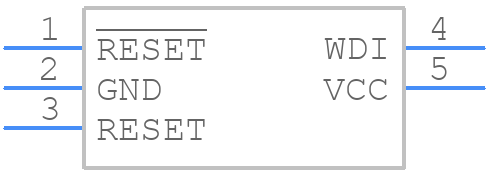

ADM8321WCY46ARJZR7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8321WCY46ARJZR7 - Analog Devices PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - RJ-5
click to zoom
3D Models
ADM8321WCY46ARJZR7 - Analog Devices - 3D model - SOT23 (5-Pin) - RJ-5
click to zoom

ADM8321WCY46ARJZR7 Details

  • Manufacturer Part Number:

    ADM8321WCY46ARJZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    RJ-5

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP5,.12,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.9 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.63V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

ADM8321WCY46ARJZR7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADM8321WCY46ARJZR7 can be found in the Analog Devices application note AN-1071, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The ADM8321WCY46ARJZR7 is a programmable voltage regulator, and the output voltage can be configured using the I2C interface. The specific configuration depends on the desired output voltage and the application requirements. Refer to the datasheet and the Analog Devices application note AN-1141 for more information on programming the device.
  • The maximum current capability of the ADM8321WCY46ARJZR7 is 1.5A. However, the actual current capability may be limited by the thermal performance of the device and the PCB layout. It is recommended to consult the datasheet and the thermal management guidelines in the application note AN-1071 to ensure reliable operation.
  • The ADM8321WCY46ARJZR7 has a built-in overcurrent protection feature that can be enabled through the I2C interface. The device can be configured to limit the output current to a specific value, and it will automatically shut down if the current exceeds this limit. Refer to the datasheet and the application note AN-1141 for more information on implementing overcurrent protection.
  • The operating temperature range of the ADM8321WCY46ARJZR7 is -40°C to +125°C. However, the device may not operate within specifications at the extreme temperatures, and the reliability may be affected. It is recommended to consult the datasheet and the application notes for more information on operating temperature and thermal management.
