ADM8613Y232ACBZ-R7 - Analog Devices

Description: Supervisory Circuits IC,Reset,Watchdog,WD_DIS ULP Supv Ckt

Download ADM8613Y232ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

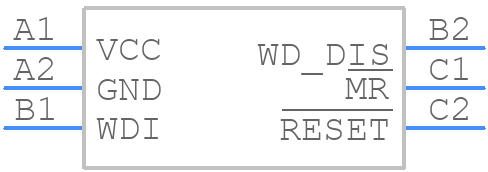

ADM8613Y232ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8613Y232ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - 6-Ball Wafer Level Chip Scale Package
click to zoom
3D Models
ADM8613Y232ACBZ-R7 - Analog Devices - 3D model - BGA - 6-Ball Wafer Level Chip Scale Package
click to zoom

ADM8613Y232ACBZ-R7 Details

  • Manufacturer Part Number:

    ADM8613Y232ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-17

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.9 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.96 mm

ADM8613Y232ACBZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM8613Y232ACBZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 2.3V to 5.5V, and that the output is properly terminated with a load resistance of 1kΩ or higher.
  • The ADM8613Y232ACBZ-R7 is rated for operation from -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • To troubleshoot issues with the ADM8613Y232ACBZ-R7, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the input signals are within the recommended range and that the output is properly terminated. If issues persist, check for any signs of overheating, and ensure that the device is properly soldered and mounted.
  • Yes, the ADM8613Y232ACBZ-R7 is a high-reliability device that is suitable for use in demanding applications such as aerospace, defense, and industrial control systems. It's manufactured using a robust process and is fully tested to ensure high reliability and performance.
