ADM8614Y263ACBZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADM8614Y263ACBZ-R7 - VOLTAGE SUPERVISOR, 5.5V, WLCSP-6

Download ADM8614Y263ACBZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

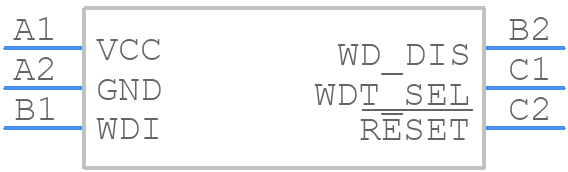

ADM8614Y263ACBZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8614Y263ACBZ-R7 - Analog Devices PCB footprint - BGA - BGA - ADM8615Y100ACBZ-R7
click to zoom
3D Models
ADM8614Y263ACBZ-R7 - Analog Devices - 3D model - BGA - ADM8615Y100ACBZ-R7
click to zoom

ADM8614Y263ACBZ-R7 Details

  • Manufacturer Part Number:

    ADM8614Y263ACBZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CB-6-17

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.9 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.63V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.96 mm
