ADM8691ARWZ - Analog Devices

Description: ADM8691ARWZ, Processor Supervisor 4.75 → 5.5 V Active High, Active Low, 16-Pin SOIC W

Download ADM8691ARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

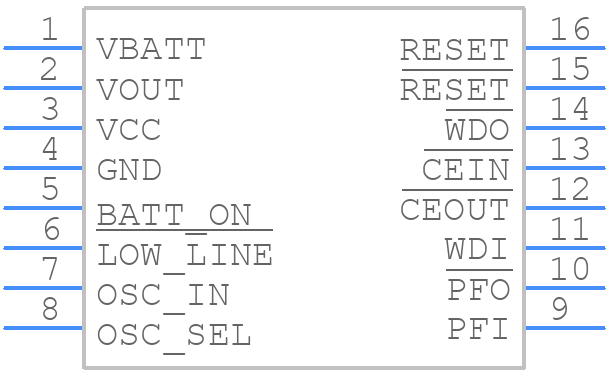

Symbol
ADM8691ARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8691ARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom
3D Models
ADM8691ARWZ - Analog Devices - 3D model - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom

ADM8691ARWZ Details

  • Manufacturer Part Number:

    ADM8691ARWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM8691ARWZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADM8691ARWZ involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, the device should be placed near the power supply and the output should be routed away from the input to minimize feedback.
  • To ensure the ADM8691ARWZ is stable and does not oscillate, it is recommended to follow the recommended layout and placement guidelines, use a sufficient output capacitor, and ensure that the input and output impedance are matched. Additionally, the device should be operated within the recommended operating conditions and the input voltage should be within the specified range.
  • The maximum input voltage that the ADM8691ARWZ can handle is 5.5V. Exceeding this voltage may damage the device or affect its performance.
  • The ADM8691ARWZ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for more information on high-temperature operation.
  • To troubleshoot issues with the ADM8691ARWZ, it is recommended to check the input and output voltages, ensure that the device is properly powered, and verify that the input and output impedance are matched. Additionally, checking the device's temperature and ensuring that it is operated within the recommended operating conditions can help identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM8691ARWZ Overview

Use the download button to access the ADM8691ARWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM86, or try a keyword search, such as Power Management Circuits
