ADM8695ARWZ - Analog Devices

Description: ADM8695ARWZ, Processor Supervisor 4.75 → 5.5 V Active High, Active Low, 16-Pin SOIC W

Download ADM8695ARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

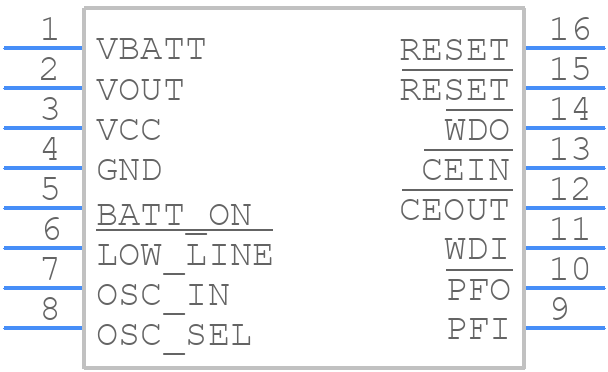

ADM8695ARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8695ARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom
3D Models
ADM8695ARWZ - Analog Devices - 3D model - Small Outline Packages - . 16-Lead Standard Small Outline Package [SOIC_W] Wide Body (RW-16)
click to zoom

ADM8695ARWZ Details

  • Manufacturer Part Number:

    ADM8695ARWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-013AA, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADM8695ARWZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADM8695ARWZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and power-down of the ADM8695ARWZ, it's essential to follow a controlled power-up sequence. The device should be powered up in the following order: VCC, VDD, and then VIN. During power-down, the sequence should be reversed. Additionally, the power supply should be ramped up and down slowly to prevent voltage spikes and ensure a clean shutdown.
  • The ADM8695ARWZ has a maximum junction temperature of 150°C. To prevent overheating, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink. The device should be mounted on a PCB with a good thermal conductivity, and the ambient temperature should be kept below 85°C. Additionally, the device's power consumption should be monitored, and the input voltage should be kept within the recommended range.
  • To troubleshoot issues with the ADM8695ARWZ, start by verifying the input voltage, output voltage, and load current. Check the PCB layout and ensure that it meets the recommended guidelines. Verify that the device is properly powered up and powered down. Use an oscilloscope to check for voltage spikes, noise, or oscillations. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
  • The ADM8695ARWZ is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper design and testing. However, it's essential to consult with Analog Devices' technical support and follow their guidelines for high-reliability or high-temperature applications. Additionally, the device should be thoroughly tested and qualified for the specific application requirements.
