ADM8699ARNZ - Analog Devices

Description: Processor Supervisor 4.65V 100uA 8-SOIC

Download ADM8699ARNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

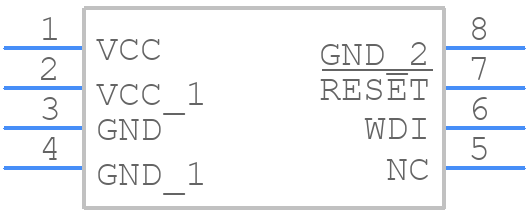

Symbol
ADM8699ARNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADM8699ARNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)_2
click to zoom
3D Models
ADM8699ARNZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)_2
click to zoom

ADM8699ARNZ Details

  • Manufacturer Part Number:

    ADM8699ARNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.59 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADM8699ARNZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital sections separate, and use a star-grounding configuration to minimize noise.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) for power supply decoupling, and place it as close to the device as possible. Ensure the power supply is clean and regulated, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The recommended input impedance is 50 ohms, but the device can operate with input impedances ranging from 25 ohms to 100 ohms. However, the input impedance should be matched to the output impedance of the preceding stage to ensure maximum power transfer.
  • Use a low-noise, high-PSRR voltage regulator to power the device. Ensure the input signal is properly filtered and terminated, and use a high-quality, low-capacitance output capacitor (e.g., 100nF ceramic). Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
  • The ADM8699ARNZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADM8699ARNZ Overview

Use the download button to access the ADM8699ARNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADM86, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
