ADN2526ACPZ-R7 - Analog Devices

Description: Differential Laser Diode Driver

Download ADN2526ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

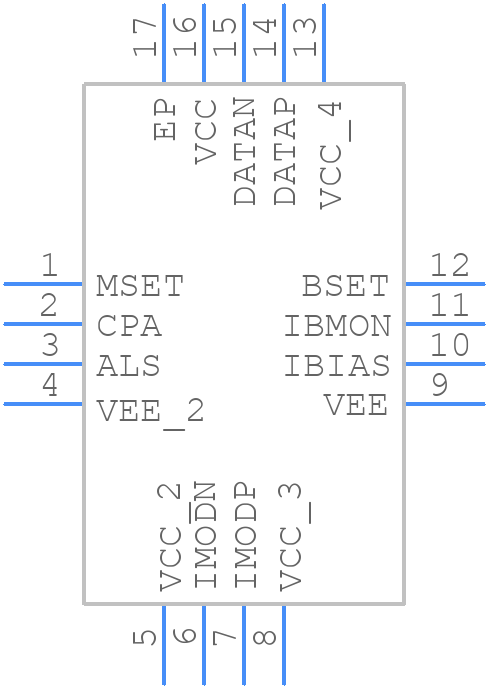

Symbol
ADN2526ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2526ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P300X300X90-17N
click to zoom
3D Models
ADN2526ACPZ-R7 - Analog Devices - 3D model - Other - QFN50P300X300X90-17N
click to zoom

ADN2526ACPZ-R7 Details

  • Manufacturer Part Number:

    ADN2526ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-22

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADN2526ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2526ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The ADN2526ACPZ-R7 requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors. The datasheet provides a recommended biasing scheme and decoupling network that should be followed.
  • The ADN2526ACPZ-R7 is capable of supporting data rates up to 2.5 Gbps. However, the actual data rate achieved will depend on the specific application, PCB layout, and signal integrity. It is recommended to consult the datasheet and application notes for more information on achieving high-speed data transmission.
  • Troubleshooting issues with the ADN2526ACPZ-R7 typically involves using oscilloscopes and signal analyzers to measure the signal quality and jitter. It is also recommended to consult the datasheet and application notes for guidance on signal integrity and jitter reduction techniques. Additionally, Analog Devices provides a range of evaluation boards and software tools that can be used to troubleshoot and optimize the performance of the ADN2526ACPZ-R7.
  • The ADN2526ACPZ-R7 is designed to be compatible with a range of high-speed data converters and transceivers from Analog Devices and other manufacturers. However, compatibility will depend on the specific application and system requirements. It is recommended to consult the datasheet and application notes for more information on compatibility and interoperability.
