ADN2817ACPZ - Analog Devices

Description: Continuous Rate 10 Mbps to 2.7 Gbps Clock and Data Recovery IC (With High Sensitivity Limiting Amp)

Download ADN2817ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

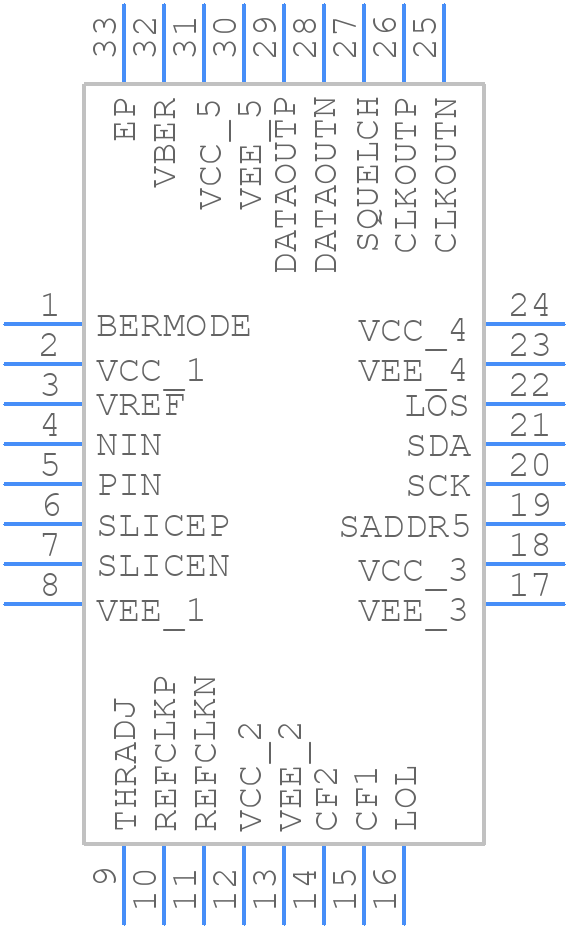

ADN2817ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2817ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-11 (LFCSP)-2
click to zoom
3D Models
ADN2817ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-11 (LFCSP)-2
click to zoom

ADN2817ACPZ Details

  • Manufacturer Part Number:

    ADN2817ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-11

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Applications:

    SDH; SONET

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.247 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ATM/SONET/SDH CLOCK RECOVERY CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADN2817ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • Use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a 10 μF capacitor between VCC and AVCC. Place these capacitors close to the device pins. Also, ensure a stable power supply with minimal ripple and noise.
  • The maximum cable length depends on the specific application and signal frequency. As a general guideline, the ADN2817ACPZ can support cable lengths up to 100 meters at 1 Gbps. However, it's recommended to consult with Analog Devices' application engineers for specific guidance.
  • Use a high-speed oscilloscope to analyze the signal quality and jitter. Check the PCB layout, power supply, and termination for any issues. Consult the ADN2817ACPZ datasheet and application notes for troubleshooting guidelines and best practices.
  • Yes, the ADN2817ACPZ can be used in a multi-lane configuration. Consult the datasheet and application notes for guidelines on lane bonding, channel alignment, and clocking schemes. It's recommended to consult with Analog Devices' application engineers for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN2817ACPZ Overview

Use the download button to access the ADN2817ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN28, or try a keyword search, such as ATM/SONET/SDH ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
