ADN2830ACPZ32 - Analog Devices

Description: Analog Devices ADN2830ACPZ32 Laser Driver

Download ADN2830ACPZ32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

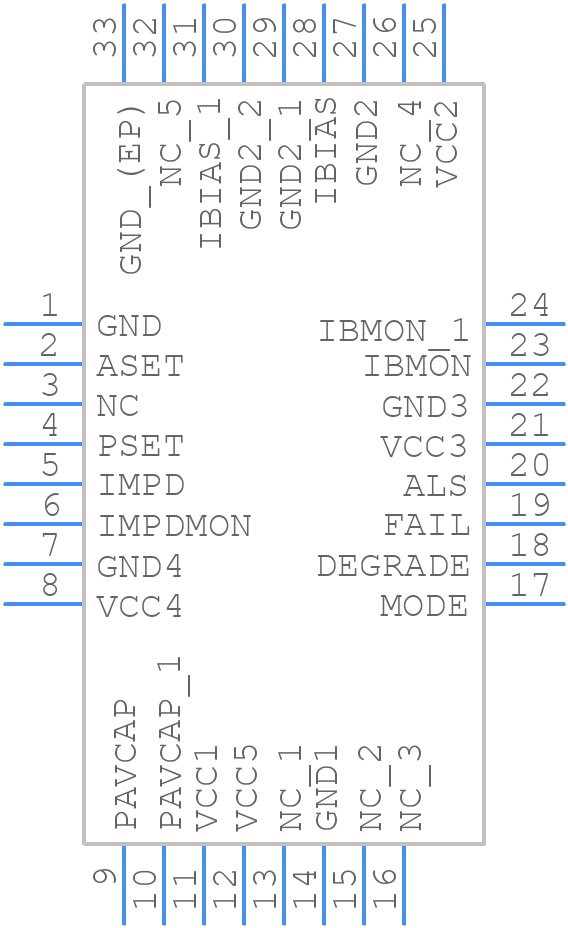

ADN2830ACPZ32 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2830ACPZ32 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-7 (LFCSP)
click to zoom
3D Models
ADN2830ACPZ32 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-7 (LFCSP)
click to zoom

ADN2830ACPZ32 Details

  • Manufacturer Part Number:

    ADN2830ACPZ32

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XBCS-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADN2830ACPZ32 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2830ACPZ32 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To optimize the performance of the ADN2830ACPZ32, ensure that the input signal is properly terminated, use a low-jitter clock source, and optimize the PCB layout for minimal signal reflections and crosstalk. Additionally, ensure that the device is properly powered and decoupled.
  • The ADN2830ACPZ32 is rated for operation from -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and the user should ensure that the device is properly cooled and operated within the recommended temperature range.
  • While the ADN2830ACPZ32 is designed for 50Ω systems, it can be used in non-50Ω systems with some adjustments. However, the user should be aware that the device's performance may be affected, and additional circuitry may be required to match the impedance.
  • To troubleshoot issues with the ADN2830ACPZ32, start by verifying that the device is properly powered and decoupled. Check the input signal quality and ensure that it is properly terminated. Use an oscilloscope to verify the output signal quality and check for any signs of signal degradation or distortion.
