ADN2841ACPZ-48 - Analog Devices

Description: Laser Driver 2.7Gbps 1-CH 48-Pin LFCSP EP Tray

Download ADN2841ACPZ-48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

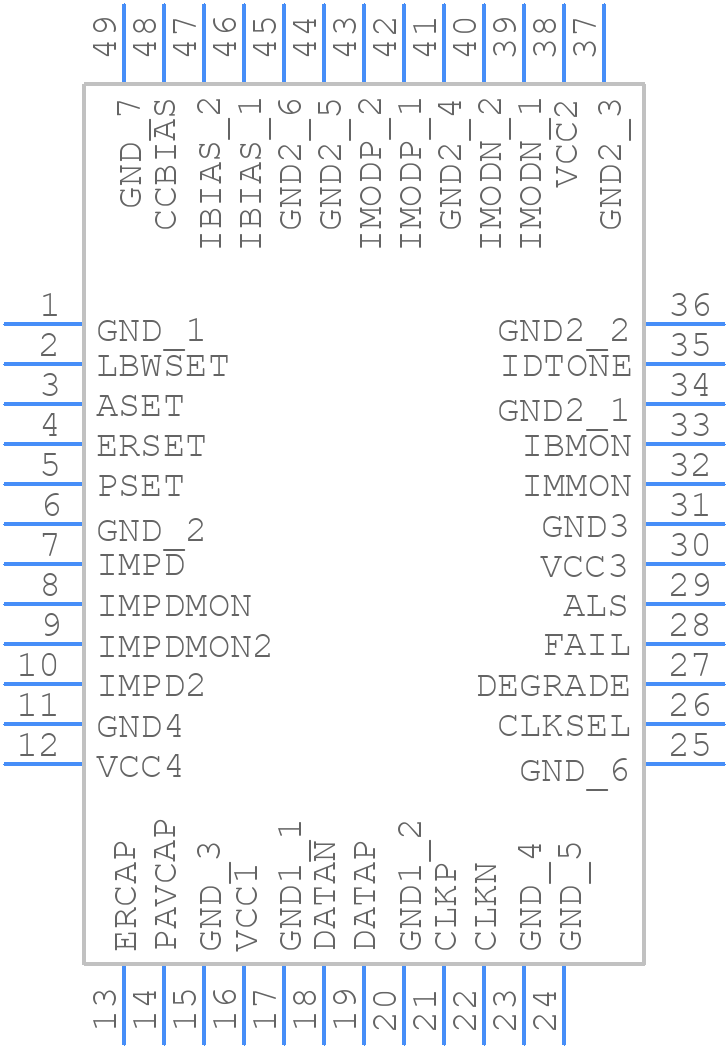

ADN2841ACPZ-48 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2841ACPZ-48 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Lead Lead Frame Chip Scale Package [LFCSP] 7 mm × 7 mm Body and 0.75 mm Package Height (CP-48-4)
click to zoom
3D Models
ADN2841ACPZ-48 - Analog Devices - 3D model - Quad Flat No-Lead - 48-Lead Lead Frame Chip Scale Package [LFCSP] 7 mm × 7 mm Body and 0.75 mm Package Height (CP-48-4)
click to zoom

ADN2841ACPZ-48 Details

  • Manufacturer Part Number:

    ADN2841ACPZ-48

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-4

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADN2841ACPZ-48 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN2841ACPZ-48 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The ADN2841ACPZ-48 requires a single 3.3V power supply. A 0.1uF decoupling capacitor should be placed close to the device, and a 10uF capacitor can be added in parallel for additional filtering. The power supply should be able to provide a minimum of 100mA of current.
  • The ADN2841ACPZ-48 can support data rates up to 3.2Gbps. However, the actual data rate achieved will depend on the quality of the signal, the PCB layout, and the receiver's capabilities.
  • To troubleshoot issues with the ADN2841ACPZ-48, start by checking the power supply and decoupling. Verify that the input signal is within the specified range and that the PCB layout is correct. Use an oscilloscope to check the signal integrity and look for signs of signal degradation or distortion.
  • The ADN2841ACPZ-48 is a 3.3V LVPECL (Low-Voltage Positive Emitter-Coupled Logic) device. It can be used with other 3.3V LVPECL devices, but may require level translation or buffering when used with devices from other logic families.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN2841ACPZ-48 Overview

Use the download button to access the ADN2841ACPZ-48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN28, or try a keyword search, such as Other Interface ICs
