ADN2915ACPZ - Analog Devices

Description: ADN2915ACPZ, Clock Conditioner LVTTL LVTTL LVTTL Differential 24-Pin LFCSP VQ

Download ADN2915ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

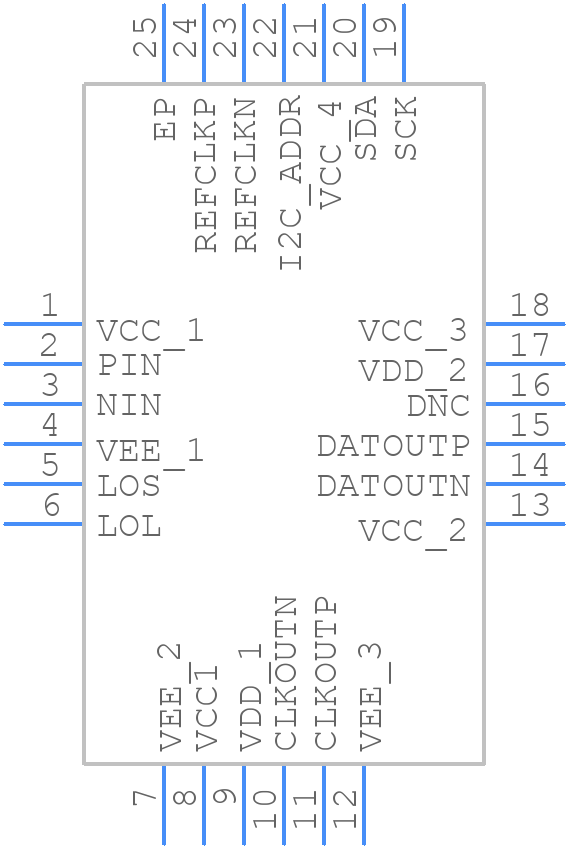

ADN2915ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN2915ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
ADN2915ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

ADN2915ACPZ Details

  • Manufacturer Part Number:

    ADN2915ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.3774 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADN2915ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and crosstalk.
  • The ADN2915ACPZ requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The ADN2915ACPZ can support data rates up to 12.5 Gbps. However, the actual data rate achieved will depend on the quality of the signal, the PCB layout, and the receiver's capabilities.
  • Use an oscilloscope to check the signal integrity and eye diagram. Verify that the power supply is stable and within the recommended range. Check the PCB layout for any signal integrity issues or noise coupling.
  • Yes, the ADN2915ACPZ can be used in a multi-lane configuration. However, each lane must be properly isolated and decoupled to prevent crosstalk and noise issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN2915ACPZ Overview

Use the download button to access the ADN2915ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN29, or try a keyword search, such as Other Telecom ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
