ADN4605ABPZ - Analog Devices

ADN4605ABPZ Details

• Manufacturer Part Number:

  ADN4605ABPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

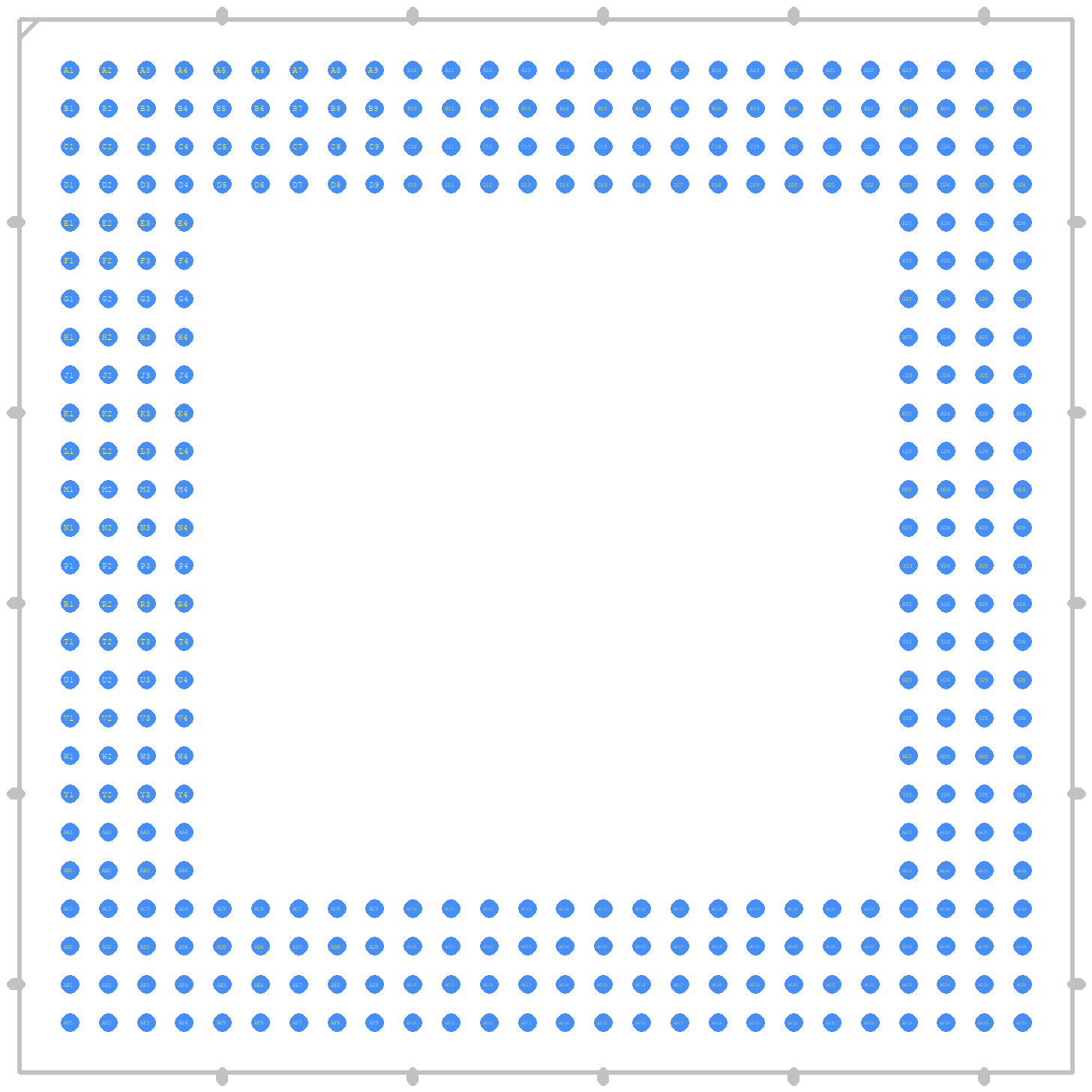

• Part Package Code:

  BGA

• Package Description:

  35 X 35 MM, ROHS COMPLIANT, M0-192BAL-2, BGA-352

• Pin Count:

  352

• Manufacturer Package Code:

  BP-352-2

• Country Of Origin:

  Philippines

• ECCN Code:

  5A991.B

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog IC - Other Type:

  CROSS POINT SWITCH

• JESD-30 Code:

  S-PBGA-B352

• JESD-609 Code:

  e3

• Length:

  35 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  40

• Number of Functions:

  1

• Number of Terminals:

  352

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.04 mm

• Supply Current-Max (Isup):

  1960 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.25 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  35 mm
