ADN4612ACPZ - Analog Devices

Description: Digital Crosspoint Single 12x12 11.3Gbps 88-Pin LFCSP Tray

Download ADN4612ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADN4612ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

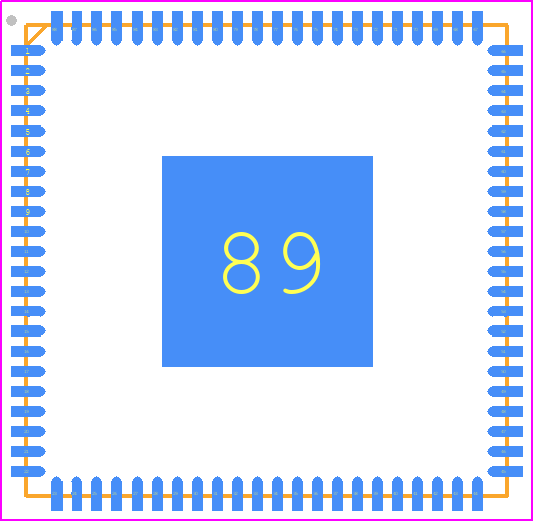

ADN4612ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 88-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
click to zoom
3D Models
ADN4612ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - 88-Lead Lead Frame Chip Scale Package [LFCSP_VQ]
click to zoom

ADN4612ACPZ Details

  • Manufacturer Part Number:

    ADN4612ACPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:44.235

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    12 X 12 MM, ROHS COMPLIANT, MO-220, LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-7

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    ALSO REQUIRED ANALOG REFERENCE VOLTAGE 1.6 TO 2V

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max (Isup):

    1070 mA

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

ADN4612ACPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4612ACPZ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a quiet ground or a voltage reference, and the VREF pin should be connected to a stable voltage reference or left open-circuit.
  • The ADN4612ACPZ can support data rates up to 1.5 Gbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal integrity.
  • To troubleshoot issues with the ADN4612ACPZ, use an oscilloscope to measure the input and output signals, and check for signal integrity issues such as ringing, overshoot, or undershoot. Also, verify that the device is properly biased and that the PCB layout is optimal.
  • Yes, the ADN4612ACPZ can be used in a differential signaling application, but it requires a differential signal to be applied to the input pins, and the output will also be differential. The device can be configured to support differential signaling by connecting the output pins in a differential configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4612ACPZ Overview

Use the download button to access the ADN4612ACPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Multiplexers or Switches
