ADN4622BRNZ - Analog Devices

Description: 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators (2 Reverse Channels)

Download ADN4622BRNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

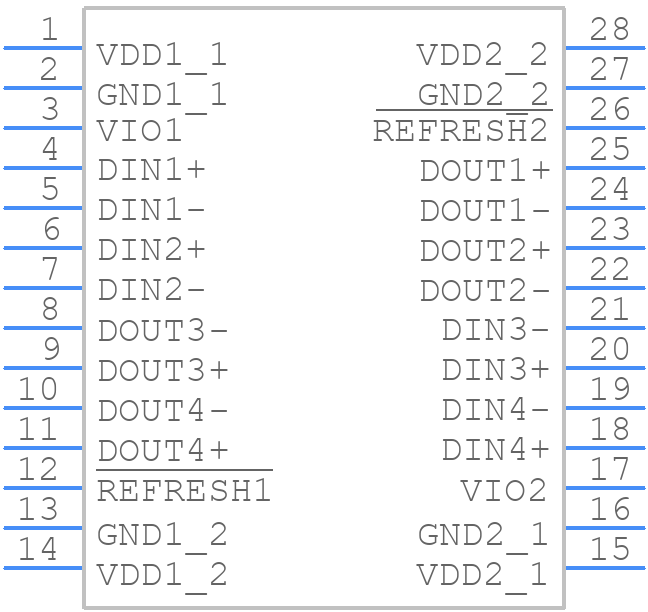

Symbol
ADN4622BRNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4622BRNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RN-28-1)
click to zoom
3D Models
ADN4622BRNZ - Analog Devices - 3D model - Small Outline Packages - (RN-28-1)
click to zoom

ADN4622BRNZ Details

  • Manufacturer Part Number:

    ADN4622BRNZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SM OUTLINE,300ML,25MLPITCH

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    SM OUTLINE,300ML,25MLPITCH

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2022-11-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.28 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADN4622BRNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4622BRNZ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • Proper termination is crucial for high-speed signals. The ADN4622BRNZ requires a 50Ω termination resistor at the output, and the input should be terminated with a 50Ω resistor to ground. Additionally, the PCB trace impedance should be matched to the termination resistor value to minimize signal reflections.
  • The maximum cable length supported by the ADN4622BRNZ depends on the signal frequency, cable type, and termination. As a general guideline, the device can support cable lengths up to 10 meters at 1 Gbps and 5 meters at 3 Gbps. However, it's recommended to consult the datasheet and application notes for specific guidance on cable length and signal integrity.
  • The ADN4622BRNZ is a flexible device that can be configured for various data rates and protocols. The configuration is typically done through the device's control pins or through an external controller. The datasheet and application notes provide detailed information on how to configure the device for specific data rates and protocols, such as SATA, PCIe, or Ethernet.
  • The ADN4622BRNZ has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as a heat sink or thermal pad, to keep the device temperature below the maximum rating. The datasheet provides thermal resistance values and guidelines for thermal management.
