ADN4624BRNZ-RL - Analog Devices

Description: 5.7 kV RMS/1.5 kV RMS, Quad-Channel LVDS 2.5 Gigabit Isolator (0 Reverse Channels)

Download ADN4624BRNZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

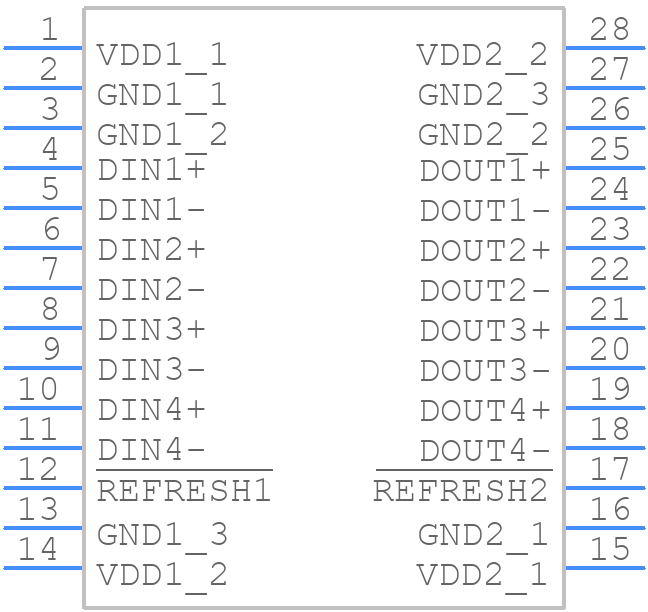

ADN4624BRNZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

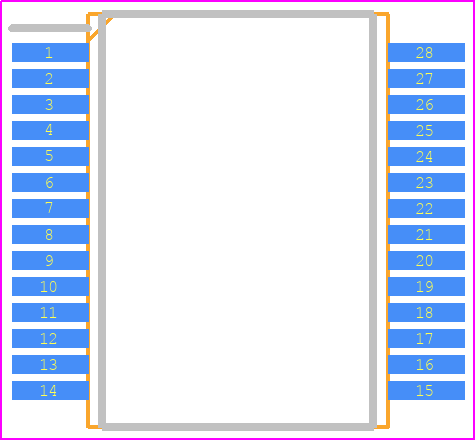

ADN4624BRNZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RN-28-1
click to zoom
3D Models
ADN4624BRNZ-RL - Analog Devices - 3D model - Small Outline Packages - RN-28-1
click to zoom

ADN4624BRNZ-RL Details

  • Manufacturer Part Number:

    ADN4624BRNZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RN-28-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.28 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADN4624BRNZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4624BRNZ-RL involves keeping the signal paths short, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, place the device close to the signal source and use a common mode choke to filter out high-frequency noise.
  • To ensure proper termination for high-speed signals, use a 50Ω termination resistor in series with the signal line, and a 50Ω termination resistor to ground in parallel with the signal line. This will help to reduce signal reflections and ensure signal integrity.
  • The maximum cable length supported by the ADN4624BRNZ-RL depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at data rates up to 3.2 Gbps. For longer cable lengths, it's recommended to use repeaters or active cables to maintain signal integrity.
  • To troubleshoot common issues with the ADN4624BRNZ-RL, start by checking the power supply voltage and ensuring it's within the recommended range. Next, verify that the device is properly terminated and that the signal paths are short and well-shielded. Use an oscilloscope to check the signal integrity and look for signs of noise or distortion. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices Inc support.
  • The ADN4624BRNZ-RL is rated for operation up to 85°C, but it's not recommended for use in high-temperature environments above 85°C. If your application requires operation at higher temperatures, consider using a different device or implementing additional cooling measures to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4624BRNZ-RL Overview

Use the download button to access the ADN4624BRNZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
