ADN4654BRWZ-RL7 - Analog Devices

Description: Digital Isolators 5kVRMS Dual ISO 2Tx Gbit LVDS

Download ADN4654BRWZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

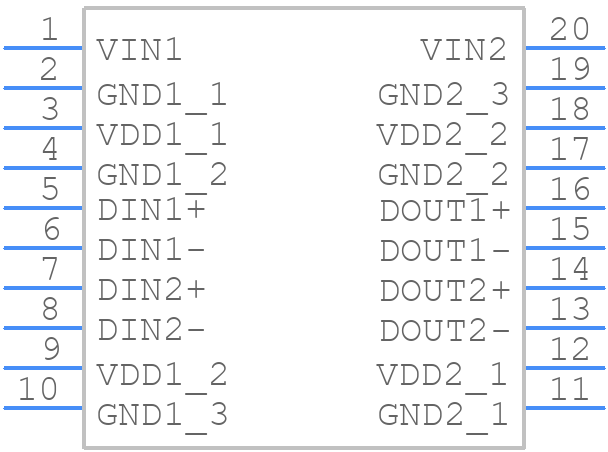

ADN4654BRWZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4654BRWZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-20 (SOIC)
click to zoom
3D Models
ADN4654BRWZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RW-20 (SOIC)
click to zoom

ADN4654BRWZ-RL7 Details

  • Manufacturer Part Number:

    ADN4654BRWZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-11-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.000005 A

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    4.5 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    4.5 ns

  • Width:

    7.5 mm

ADN4654BRWZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4654BRWZ-RL7 involves keeping the signal paths short, using a solid ground plane, and minimizing noise coupling. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • To ensure proper biasing, the ADN4654BRWZ-RL7 requires a stable voltage supply, typically between 2.7V and 5.5V. The device also requires a bias current, which can be set using an external resistor. The recommended bias current is typically around 10mA to 20mA. Additionally, the device's input and output pins should be properly terminated to prevent signal reflections and ensure signal integrity.
  • The ADN4654BRWZ-RL7 is a high-speed digital isolator that can support data rates up to 500Mbps. However, the actual data rate may vary depending on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and perform thorough testing to determine the maximum data rate for a specific design.
  • The ADN4654BRWZ-RL7 requires proper power-up and power-down sequencing to prevent damage to the device. The recommended sequence is to power up the VDD pin first, followed by the VISO pin. When powering down, the VISO pin should be powered down first, followed by the VDD pin. Additionally, the device's input and output pins should be held in a high-impedance state during power-up and power-down to prevent damage.
  • The ADN4654BRWZ-RL7 is a high-speed digital isolator that is commonly used in industrial automation, medical devices, and automotive systems. It's often used to isolate high-speed digital signals in applications such as motor control, power supplies, and data acquisition systems. The device's high-speed and low-power characteristics make it an ideal choice for applications that require reliable and efficient signal isolation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4654BRWZ-RL7 Overview

Use the download button to access the ADN4654BRWZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
