ADN4661BRZ-REEL7 - Analog Devices

Description: High Speed Differential Driver

Download ADN4661BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

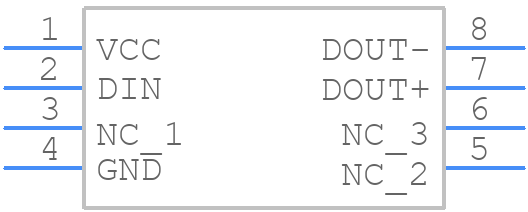

ADN4661BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4661BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Small Outline Package [SOIC] [S Suffix] (R-8)
click to zoom
3D Models
ADN4661BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 8-Lead Small Outline Package [SOIC] [S Suffix] (R-8)
click to zoom

ADN4661BRZ-REEL7 Details

  • Manufacturer Part Number:

    ADN4661BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1.5 ns

  • Width:

    3.9 mm

ADN4661BRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4661BRZ-REEL7 involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal source. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure the ADN4661BRZ-REEL7 operates within the specified temperature range, provide adequate heat sinking, avoid overheating, and ensure good airflow around the device. The device should be operated within the specified temperature range of -40°C to +125°C.
  • The recommended power-up sequence for the ADN4661BRZ-REEL7 is to apply the power supply voltage (VCC) before applying the input signal. This ensures proper device initialization and prevents potential latch-up conditions.
  • To troubleshoot issues with the ADN4661BRZ-REEL7, start by verifying the power supply voltage, checking for proper signal connections, and ensuring the device is operated within the specified temperature range. Use oscilloscopes or logic analyzers to debug signal issues.
  • Yes, the ADN4661BRZ-REEL7 is a sensitive device and requires proper ESD precautions during handling and assembly. Use anti-static wrist straps, mats, and packaging materials to prevent damage from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADN4661BRZ-REEL7 Overview

Use the download button to access the ADN4661BRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADN46, or try a keyword search, such as Line Driver or Receivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
