ADN4663BRZ-REEL7 - Analog Devices

Description: LVDS Interface IC Dual Channel 400Mbps LVDS Transmitter

Download ADN4663BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

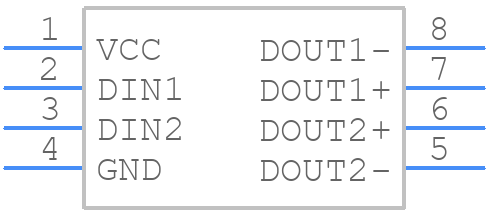

Symbol
ADN4663BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4663BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package-1
click to zoom
3D Models
ADN4663BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package-1
click to zoom

ADN4663BRZ-REEL7 Details

  • Manufacturer Part Number:

    ADN4663BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Differential Output:

    YES

  • Driver Number of Bits:

    2

  • High Level Input Current-Max:

    0.00001 A

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    1.5 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1.5 ns

  • Width:

    3.9 mm

ADN4663BRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADN4663BRZ-REEL7 involves keeping the signal traces short and away from noise sources, using a solid ground plane, and minimizing the distance between the device and the load. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
  • The ADN4663BRZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • Yes, the ADN4663BRZ-REEL7 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and that the switching frequency is within the recommended range to minimize electromagnetic interference (EMI).
  • To troubleshoot issues with the ADN4663BRZ-REEL7, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is operated within its recommended specifications. Use oscilloscopes and logic analyzers to debug the signal integrity and timing.
