ADN4664BRZ-REEL7 - Analog Devices

Description: LVDS Interface IC Dual Channel 600Mbps LVDS Receiver

Download ADN4664BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

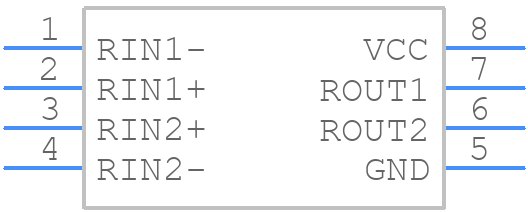

Symbol
ADN4664BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADN4664BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADN4664BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADN4664BRZ-REEL7 Details

  • Manufacturer Part Number:

    ADN4664BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012-AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Low Current-Max:

    0.002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    2.5 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    2.5 ns

  • Width:

    3.9 mm

ADN4664BRZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to use thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, ensure a low-ESR capacitor is placed close to the device to minimize power supply noise.
  • To ensure signal integrity and minimize EMI, use a shielded cable or a twisted pair for the differential signal lines. Keep the signal traces short and away from noise sources. Use a common-mode choke or a ferrite bead to filter out high-frequency noise. Also, ensure the device is placed in a shielded area to minimize radiated emissions.
  • The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input signal. This ensures the device is properly biased before the signal is applied. A soft-start circuit can also be used to reduce inrush current and prevent voltage drops during power-up.
  • To troubleshoot common issues, use an oscilloscope to visualize the signal waveform and check for distortion, ringing, or attenuation. Verify the signal amplitude and frequency are within the recommended specifications. Check the PCB layout for signal integrity issues, such as crosstalk or electromagnetic interference (EMI). Ensure the device is properly terminated and the input signal is properly biased.
  • For testing and measurement, use a high-speed oscilloscope with a bandwidth of at least 1 GHz. Use a differential probe to measure the signal amplitude and frequency. Ensure the measurement setup is properly calibrated and the oscilloscope is set to the correct trigger mode. Use a signal generator to provide a clean and stable input signal.
